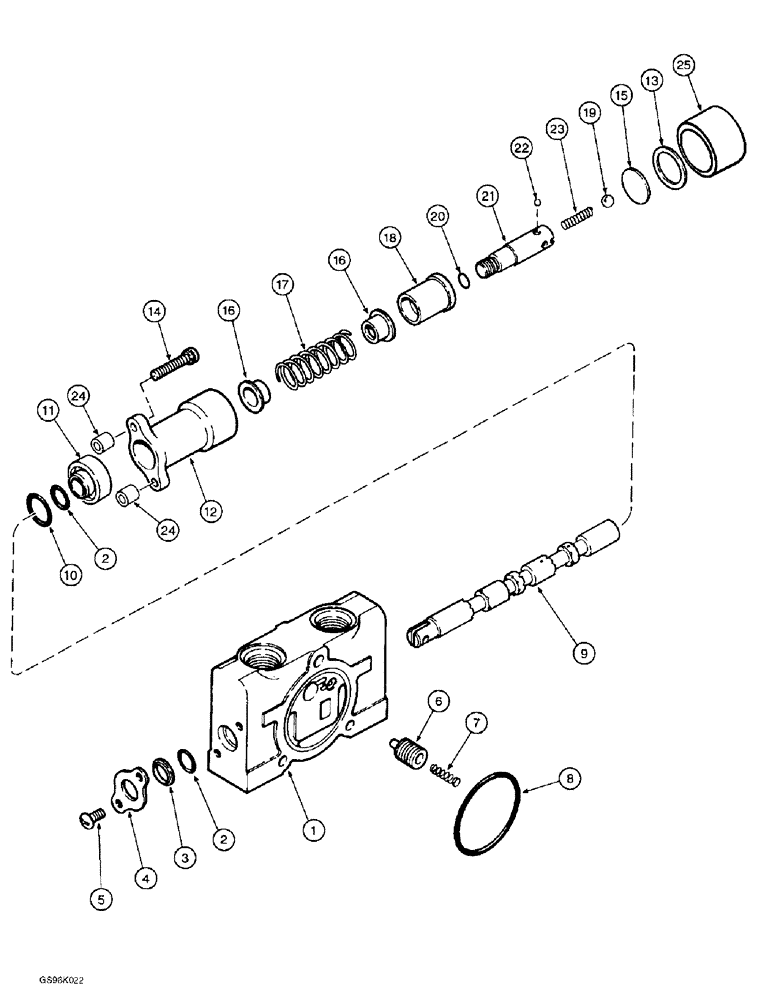

Запчасти Case IH 890 (8-26) - EXTERNAL HYDRAULIC CONTROL VALVE, BOOM SPOOL SECTION (08) - HYDRAULICS

105080A1

VALVE

ASSEMBLY - control, two spool, hydraulic (Continued)

1шт.

252784A1

VALVE, CONTROL

VALVE ASSEMBLY - control, three function, hydraulic (Continued)

1шт.

105078A1

KIT

SECTION ASSEMBLY - spool, boom

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - spool section (order 105078A1 section)

1шт.

2

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

- detent spool

2шт.

3

S111870

OIL SCRAPER RING

SEAL - wiper

1шт.

4

S111865

PLATE

- seal

1шт.

5

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

- machine, pan Phillips, 1/4 NC x 3/8 inch

2шт.

6

1344738C1

PISTON

- compensator

1шт.

7

1344737C1

SPRING

- compression

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve (order 105078A1 section)

1шт.

10

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

11

256174A1

SPACER

-

1шт.

12

1344724C1

CAP

- spool detent

1шт.

13

1344715C1

RING

- retaining

1шт.

14

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - hex socket, 1/4 NC x 1-1/4 inch

2шт.

15

1344719C1

PLATE

- spacer

1шт.

16

1344732C1

SEAT

- spring

2шт.

17

S111867

SPRING

- plunger

1шт.

18

105082A1

SLEEVE

- detent

1шт.

19

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

20

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

21

1344730C1

END

PIN - spool end detent

1шт.

22

211-1007

BALL,7/32" Dia

Gr 24, Chrome alloy steel 7/32" Dia

4шт.

23

1344718C1

SPRING

- detent

1шт.

24

1346861C1

SPACER

- bolt

2шт.

25

1540123C1

COVER

- end

1шт.
