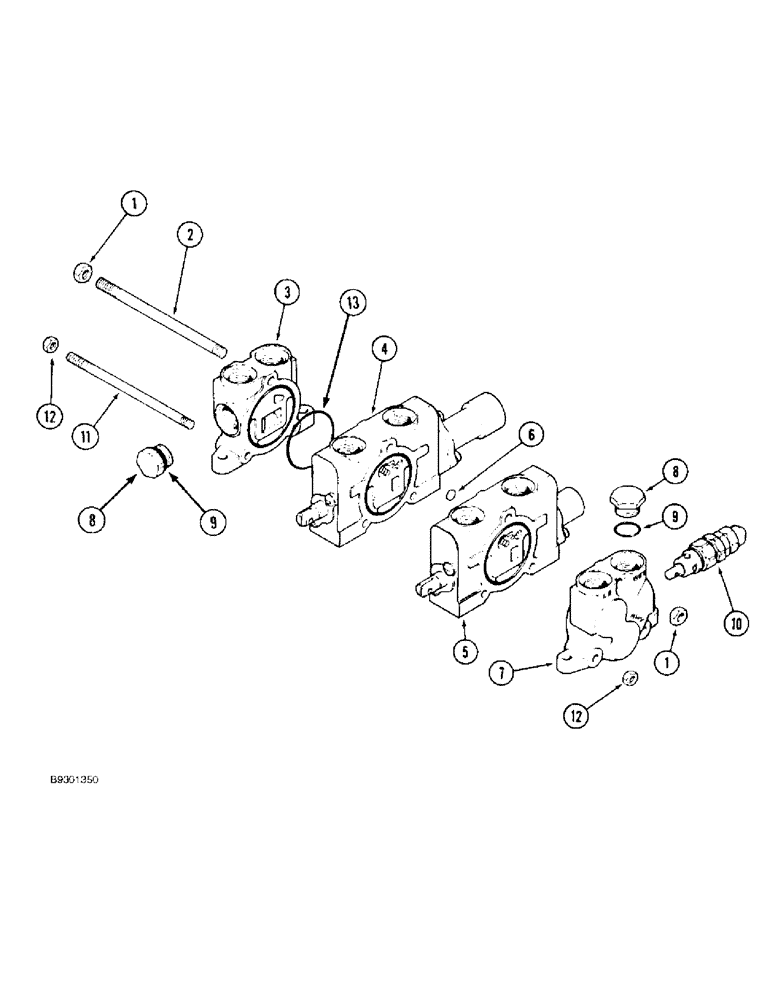

Запчасти Case IH 890 (8-22) - EXTERNAL HYDRAULIC CONTROL VALVE, TWO FUNCTION (08) - HYDRAULICS

105080A1

VALVE

ASSEMBLY - control, two spool, hydraulic, see note

1шт.

1

329-116

NUT,3/8"-24, G8

2шт.

2

1344727C1

TIE-ROD,3/8" - 24 x 6 1/8"

STUD - tie, 3/8 x 6-1/8 inch

1шт.

3

105087A1

VALVE

SECTION - inlet

1шт.

4

REF

INSTRUCTION

SECTION ASSEMBLY - boom, spool, parts list figure 8-26

1шт.

5

REF

INSTRUCTION

SECTION ASSEMBLY - bucket, regenerative, parts list figure 8-28

1шт.

6

1344736C1

PLATE

- shuttle

1шт.

7

1344744C1

OUTLET

SECTION - outlet

1шт.

8

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

1344733C1

VALVE

ASSEMBLY - relief, 2500 psi, component parts are not serviced separately

1шт.

11

1344725C1

TIE-ROD,5/16" - 18 x 6"

STUD - tie, 5/16 x 6 inch

2шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

13

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

4шт.

14

1344731C1

PLUG

- shut off, if used, not shown

3шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, If used, not shown

1шт.
