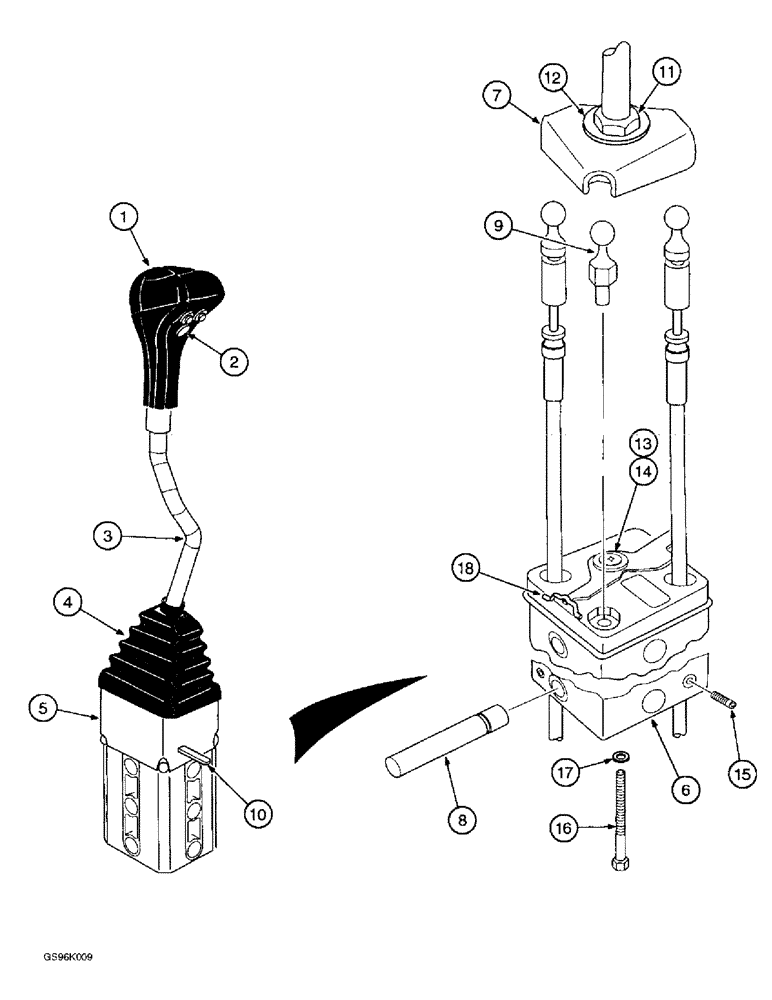

Запчасти Case IH 890 (8-20) - CONTROL ASSEMBLY, SINGLE LEVER, THREE FUNCTION (08) - HYDRAULICS

246987A1

CONTROL

ASSEMBLY - single lever, 3 function

1шт.

1

246988A1

CONTROL

KNOB ASSEMBLY - single lever three function, includes switches

1шт.

2

253280A1

PLASTIC PLUG

PLUG - switch

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH - push button

2шт.

2a

225294C1

ELEC CONNECTOR,Male, 3 Pin

CONNECTOR - electrical, not illustrated

1шт.

2b

225296C1

ELEC CONNECTOR

WEDGE - connector, not illustrated

1шт.

2c

225053C1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

TERMINAL - socket, electrical, not illustrated

3шт.

3

246984A1

LEVER

- loader control

1шт.

4

253274A1

BELLOWS

BOOT - rubber

1шт.

5

253275A1

HOUSING

- upper

1шт.

6

247713A1

BODY

HOUSING - lower

1шт.

7

253276A1

COUPLING FLANGE

YOKE - dual axis control

1шт.

8

254286A1

TUBE,12 mm OD, 57.5 mm Length

- mounting sleeve

2шт.

9

253277A1

BALL JOINT

PIVOT - ball pillar

1шт.

10

254285A1

LEVER

- lockout

1шт.

11

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

- hex, thin, 14 - 1.5 mm

2шт.

12

895-15014

WASHER,15.5mm ID x 30mm OD x 2.5mm Thk

- flat, 15.5 x 30 x 2.5 mm

1шт.

13

760-34495

SELF-TAP SCREW,Pan, M4.8 x 1.6 x 9.5mm

- self-tapping, pan Phillips, 4.8 - 1.6 x 9.5

1шт.

14

495-31022

WASHER,#10

1шт.

15

877-20810

SET SCREW,Hex Skt, M8 x 10mm, Cone Pt

SCREW - set, hex socket, 8 - 1.25 x 10 mm, cone point

2шт.

16

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

258464A1

SPRING LOCK

SPRING - lock

1шт.
