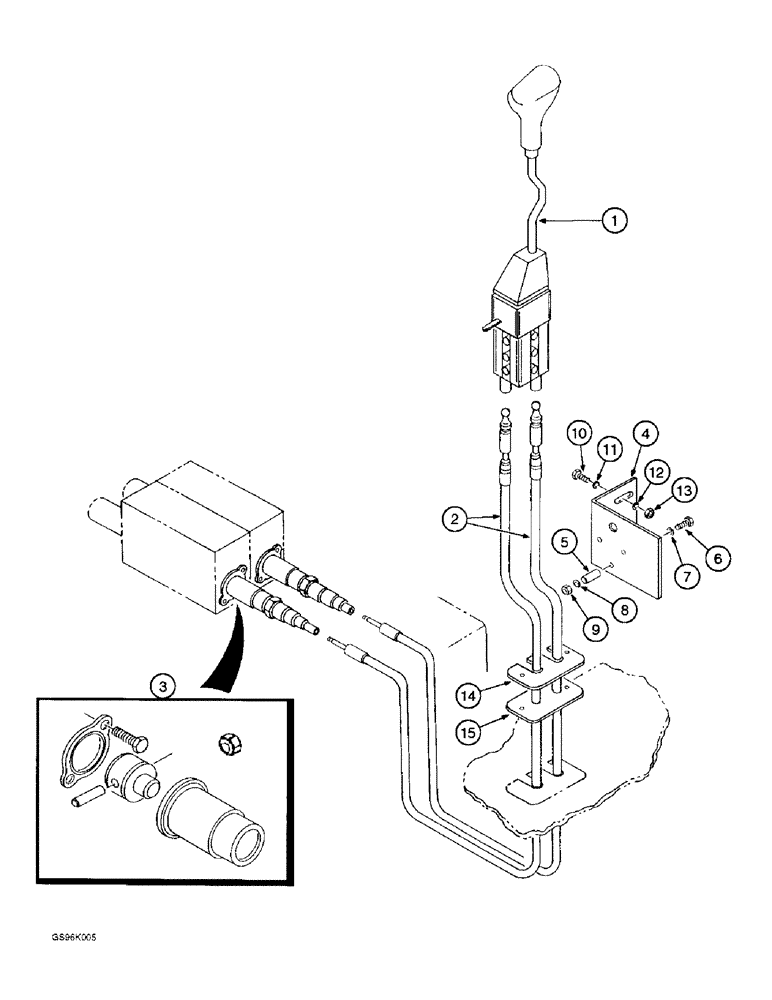

Запчасти Case IH 890 (8-12) - HYDRAULIC CONTROLS, EXTERNAL VALVE, TWO FUNCTION (08) - HYDRAULICS

1

246981A1

CONTROL

ASSEMBLY - single lever, 2 function, parts list figure 8-18

1шт.

2

247715A1

CONTROL

CABLE - control, 1981 mm (78 inch) long

2шт.

3

252798A1

SET OF PARTS

KIT - cable adapter, control

2шт.

4

222608A1

BRACKET

- joystick mounting

1шт.

5

222611A1

SPACER

- joystick mounting

3шт.

6

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

3шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

10

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

14

A165352

PLATE

- cable access

1шт.

15

A165354

SEAL

- cable access

2шт.
