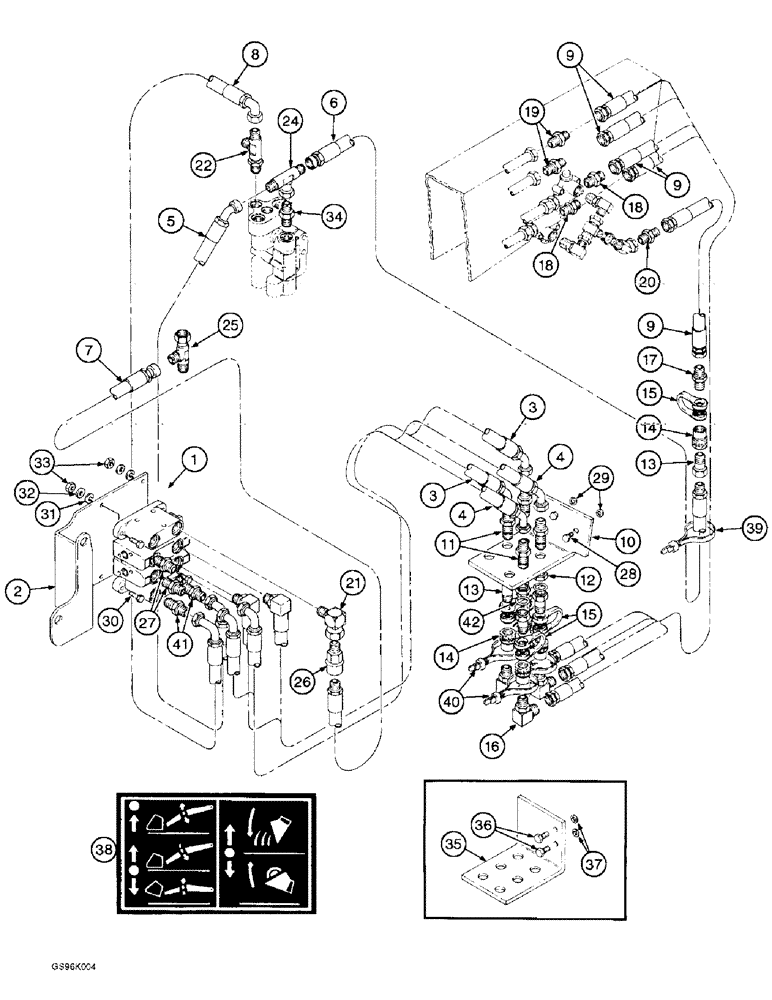

Запчасти Case IH 890 (8-10) - HYDRAULIC CONTROLS, EXTERNAL VALVE, TWO FUNCTION (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - control, 2 spool, parts list figures 8-22, 8-26, and 8-28

1шт.

2

249865A1

BRACKET

PLATE - valve mount

1шт.

3

253097A1

HOSE

- 1473 mm (58 inch) long, valve to mid mount

2шт.

4

250642A1

HOSE

- 1473 mm (58 inch) long, valve to mid mount

2шт.

5

252666A2

HOSE

- 813 mm (32 inch) long, return

1шт.

6

247033A1

HOSE

- 1660 mm (63 inch) long, return to mid mount

1шт.

7

252667A1

HOSE

- 584 mm (23 inch) long, signal

1шт.

8

252665A1

HOSE ASSY.

HOSE - 1016 mm (40 inch) long, supply

1шт.

9

250641A1

HOSE

- 1930 mm (76 inch) long, mid, Serial Range: mount-loader

5шт.

10

249866A1

BRACKET

MOUNT - coupler (8900 series tractors)

1шт.

11

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

12

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

13

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

5шт.

14

1272400C1

COUPLING

COUPLER - self sealing, female

5шт.

15

1954133C1

PLUG

PLUG - coupling, dust

5шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

4шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

18

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss

2шт.

19

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

2шт.

20

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

1шт.

21

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

- 90 degree, 7/8-14 adj O-ring x 1/2 inch swivel str thread

1шт.

22

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

- 1-3/16-12 face seal branch x face seal x 1-1/16-12 inch adj O-ring boss

1шт.

24

201-439

TEE,1"-14 ORFS x 1"-14 Sw Br

- 1-1/16 male O-ring boss x 1-14 ORF

1шт.

25

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

- 11/16-16 inch face seal branch x face x swivel face

1шт.

26

T53145

CHECK VALVE

VALVE - check, 1/2 inch

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

2шт.

28

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

30

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

32

492-11038

LOCK WASHER,3/8"

4шт.

33

425-106

NUT,3/8"-16, Cl 5

4шт.

34

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

ADAPTER - straight, 1-14 face seal x 1-1/16-12 inch O-ring boss

1шт.

35

250621A1

BRACKET

MOUNT - coupler (7100/7200 series tractors)

1шт.

36

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch (7100/7200 series tractors)

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (7100/7200 series tractors) 1/2"

2шт.

38

321-6404

DECAL

- maintenance chart

1шт.

39

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

12шт.

40

1985078C2

SET OF PARTS

KIT - coupler tag (color coded)

1шт.

41

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., 1"-14 ORFS x 7/8"-14 ORB

2шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.
