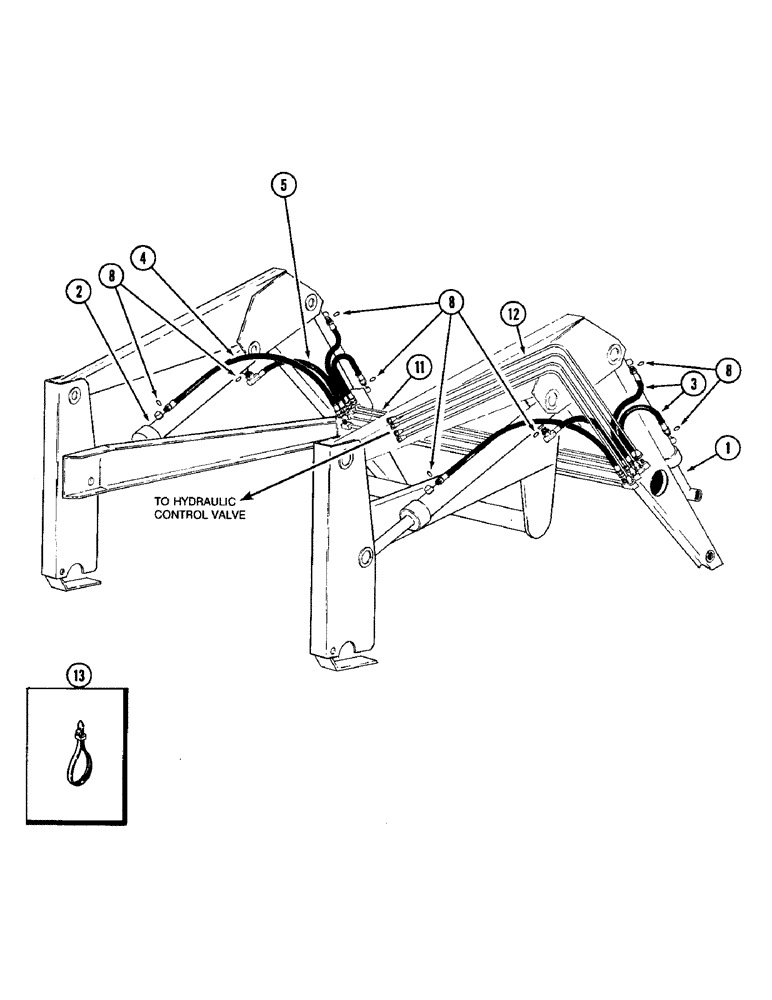

Запчасти Case IH 7QA (8-04) - BUCKET AND BOOM HYDRAULICS, 7QA LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY bucket (See Figure 8-8)

2шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY boom (See Figure 8-12)

2шт.

3

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

Bucket Cylinder, For Initial Service Also Order One 218-5057 Connector and One 237-6006 O-Ring for Each Hose Ordered

4шт.

4

147876C1

HYDRAULIC HOSE

boom lower, 1/4 x 45 inch, For initial service also order one 218-5057 connector and one 237-6006 o-ring for each hose ordered.

2шт.

5

A51522

HYDRAULIC HOSE

ASSEMBLY boom raise, 1/4 x 25 inch, For initial service also order one 218-5105 elbow and one 237-6006 o-ring for each hose ordered.

2шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

(Not shown)

6шт.

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree adjustable, 9/16-18 flared x 9/16-18 inch o-ring boss (Not shown)

2шт.

11

1960651C1

HYD TUBE

ASSEMBLY, front

4шт.

12

1969276C1

HYD TUBE

ASSEMBLY, rear

4шт.

13

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie 14 inch

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.
