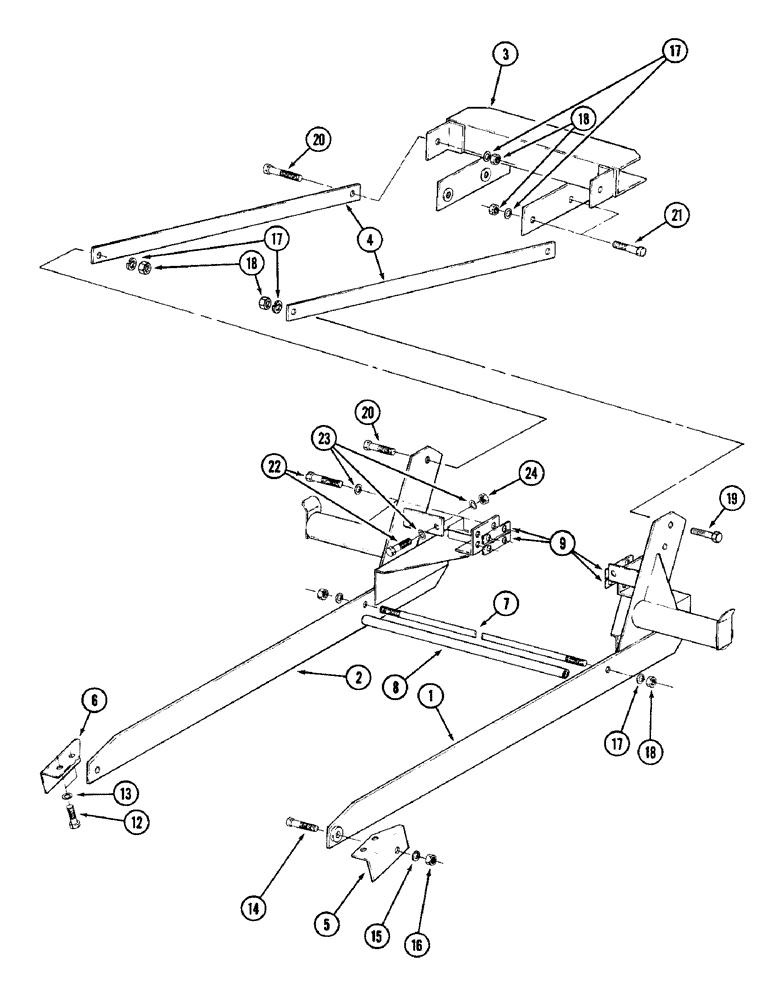

Запчасти Case IH 7QA (9-10) - MOUNTING SUPPORTS AND RAILS, 7QA LOADER (09) - CHASSIS/ATTACHMENTS

1

1969242C1

FRAME

SUPPORT boom mounting, right rear

1шт.

2

1969243C1

FRAME

SUPPORT boom mounting, left rear

1шт.

3

1969247C1

FRAME

SUPPORT front boom mounting

1шт.

4

1969249C1

RAIL

mounting, front

2шт.

5

1969251C1

BRACKET

rail, right rear

1шт.

6

1969250C1

BRACKET

rail, left rear

1шт.

7

1969245C1

ROD

tie

1шт.

8

1969246C1

TUBE

spacer, tie rod

1шт.

9

1969244C1

SPACER

BAR (With mid-mount mower)

2шт.

9

1969244C1

SPACER

BAR (Without mid-mount mower)

4шт.

12

A52314

BOLT

hex, 14 mm - 2.0 x 40 mm

4шт.

13

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

4шт.

14

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

2шт.

15

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

16

425-1012

NUT,3/4"-10, G5

2шт.

17

492-11062

BEARING WASHER,5/8"

10шт.

18

425-1010

NUT,5/8"-11, G5

10шт.

19

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

20

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

3шт.

21

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

hex, 5/8 NC x 2-1/4 inch

4шт.

22

1973090C1

BOLT

hex special, 12 mm - 1.25 x 45 mm

10шт.

23

892-11012

LOCK WASHER,M12

12шт.

24

825-11412

NUT,M12 x 1.25, Cl 8

hex, 12 mm - 1.25

2шт.
