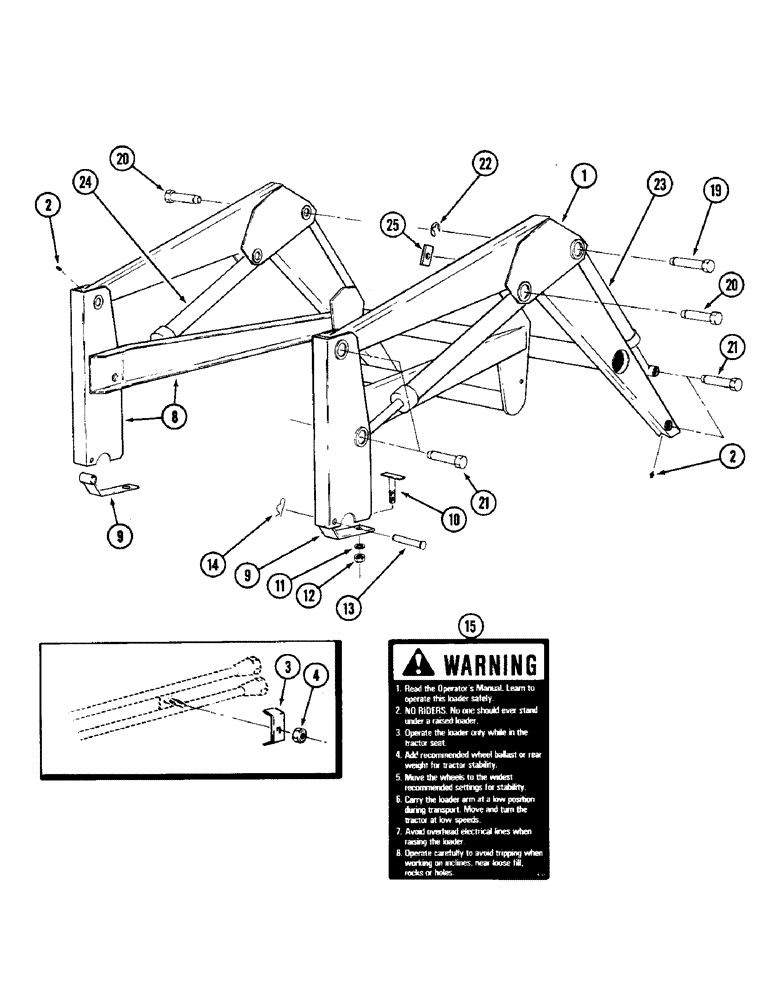

Запчасти Case IH 7QA (9-04) - BOOM AND SUPPORT, 7QA LOADER (09) - CHASSIS/ATTACHMENTS

1

1969241C1

BOOM

ASSEMBLY loader, Includes: Ref. 2 - 4

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

1960643C1

CLIP

tube

8шт.

4

425-105

NUT,5/16"-18, G5

8шт.

8

1969178C1

FRAME ASSY

SUPPORT boom, Includes: Ref. 9 - 15

1шт.

9

1969179C1

HINGE

boom support

2шт.

10

1969239C1

BOLT

T- 5/8 inch NC

2шт.

11

492-11062

BEARING WASHER,5/8"

2шт.

12

425-1010

NUT,5/8"-11, G5

2шт.

13

1969343C1

PIN

hinge, ring pull

2шт.

14

407211R1

CLIP

PIN hair (Package of 20)

2шт.

15

REF

INSTRUCTION

DECAL warning (See Figure 9-22)

1шт.

19

1960667C1

PIN

pivot, 1 x 4 inch

1шт.

20

1960666C1

PIN

pivot, 1 x 3-7/8 inch

3шт.

21

1960665C1

PIN

pivot, 1 x 3-3/4 inch

8шт.

22

933355R1

CIRCLIP,M20

retaining, external

12шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY bucket (See Figure 8-8)

2шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY boom (See Figure 8-12)

2шт.

25

1978887C1

PAD

pivot pin

6шт.
