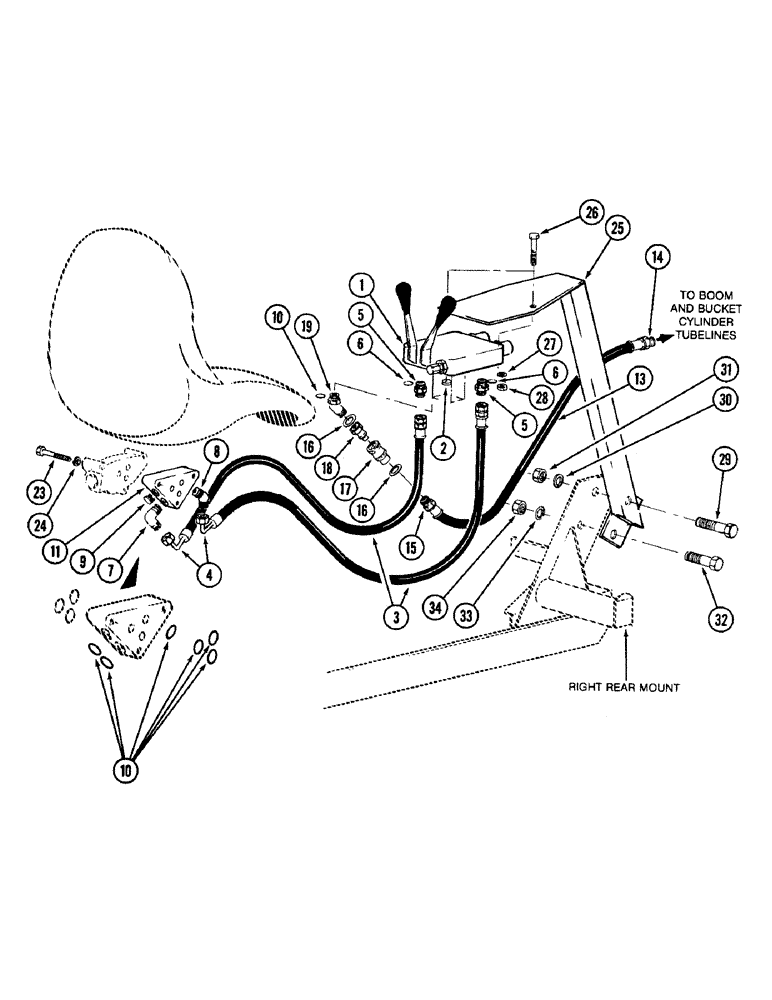

Запчасти Case IH 7QA (8-18) - CONTROL HYDRAULICS, 7QA LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY hydraulic control (See Figure 8-22 and 8-24)

1шт.

2

REF

INSTRUCTION

PLATE orifice (See Figure 8-22)

1шт.

3

810570C2

HYDRAULIC HOSE

ASSEMBLY 3/8 x 90 inch

2шт.

For initial service also order one 218-5044 for each hose ordered.

1шт.

3

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

hydraulic, 95 inch long

2шт.

For initial service also order one 218-5044 for each hose ordered.

1шт.

4

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

ELBOW 90 degree, 9/16-18 inch flared

2шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

5

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16-18 flared x 3/4-16 inch o-ring boss

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, flared adj, 9/16-18 inch o-ring boss

1шт.

8

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, flared adj, 9/16-18 inch o-ring boss

1шт.

9

76349

PLUG,9/16" - 18 ORB

1шт.

11

1960659C1

VALVE

MANIFOLD hydraulic

1шт.

13

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8 x 55 inch long (Replaces 1277506C1)

4шт.

For initial service of 1277506C1 also order one 218-734 and 218-443 for each hose ordered. For initial service of 810139C2 also order one 218-734 and 218-1024 for each hose ordered.

1шт.

14

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR, 9/16-18 inch flared (Used with 1277506C1)

4шт.

14

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR straight, 9/16-18 thread (Used with 810139C2)

4шт.

15

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

9/16-18 flared x 1/4 inch PT (Used with 1277506C1)

4шт.

15

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

(Used with 810139C2)

4шт.

16

1960687C1

PISTON RING SET

color coded, four pairs

1шт.

17

1349642C1

COUPLING

hydraulic, quick (Replaces 166122C92)

4шт.

18

166123C91

COUPLING

ASSEMBLY male, 1/4 inch PT

4шт.

19

1349641C1

ADAPTER

ELBOW 45 degree (Replaces 1960686C1)

4шт.

23

30013R1

BOLT,Hex, M8 x 1.25 x 75mm, Cl 10.9

hex, M5 x 75 mm

3шт.

24

892-11008

LOCK WASHER,8mm ID

3шт.

25

1349644C1

STAND

valve (Replaces 196248C1)

1шт.

26

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

hex, 1/4 NC x 2 inch

2шт.

27

492-11025

LOCK WASHER,1/4"

2шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

29

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

30

492-11062

BEARING WASHER,5/8"

1шт.

31

425-1010

NUT,5/8"-11, G5

1шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

34

425-108

NUT,1/2" - 13, Gr 5

1шт.

214389

PLUG,3/4" - 16 ORB

1шт.

76349

PLUG,9/16" - 18 ORB

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

10шт.
