Запчасти Case IH 74L (20) - HYDRAULIC REMOTE HOSES, TWO SPOOL (35) - HYDRAULIC SYSTEMS

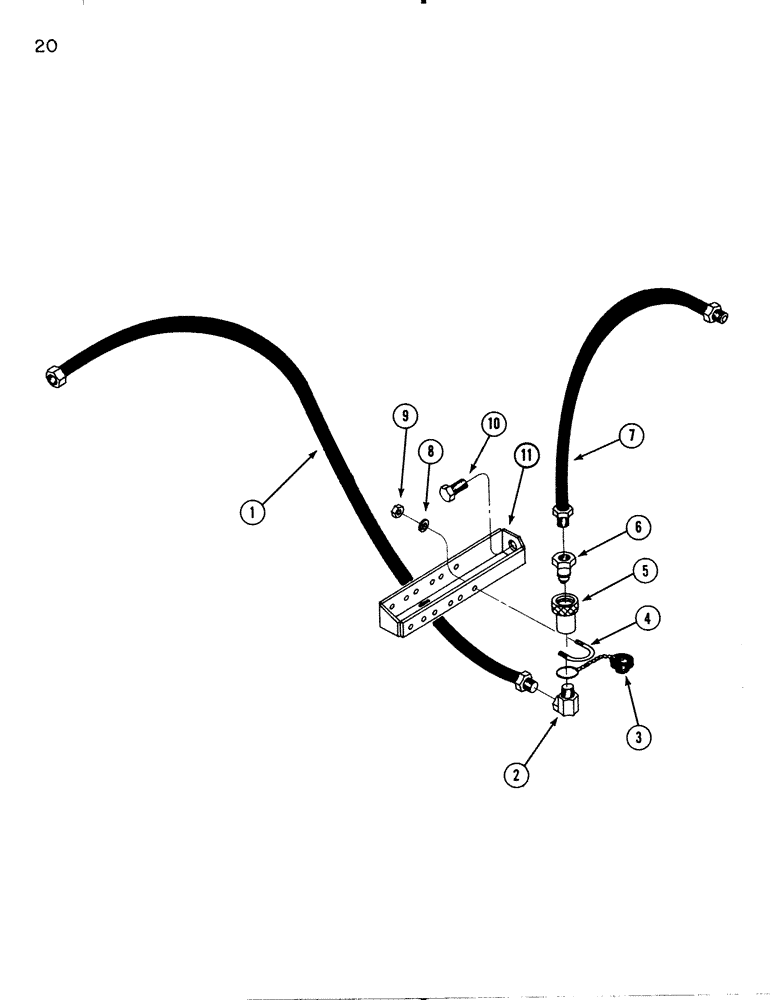

Схема запчастей Case IH 74L - (20) - HYDRAULIC REMOTE HOSES, TWO SPOOL (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

T58004

HOSE ASSY.

HOSE - 1/2 x 108" (12.7 x 2743.2 mm)

4шт.

2

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 Deg. x 1.2 Pipe

4шт.

3

T57615

PLUG

- coupler

4шт.

4

A66788

CLAMP

- 1/4" U

4шт.

5

G049718

COUPLER - female

4шт.

6

H049726

COUPLER - male

4шт.

7

T57997

HOSE ASSY.

HOSE - 1/2 x 72" (12.7 x 1828.8 mm)

4шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

10

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

11

T58025

MOUNTING PARTS

BRACKET - quick coupler

1шт.

Выбрано товаров: 11
