Запчасти Case IH 74L (20[1]) - HYDRAULIC REMOTE HOSES, THREE SPOOL (35) - HYDRAULIC SYSTEMS

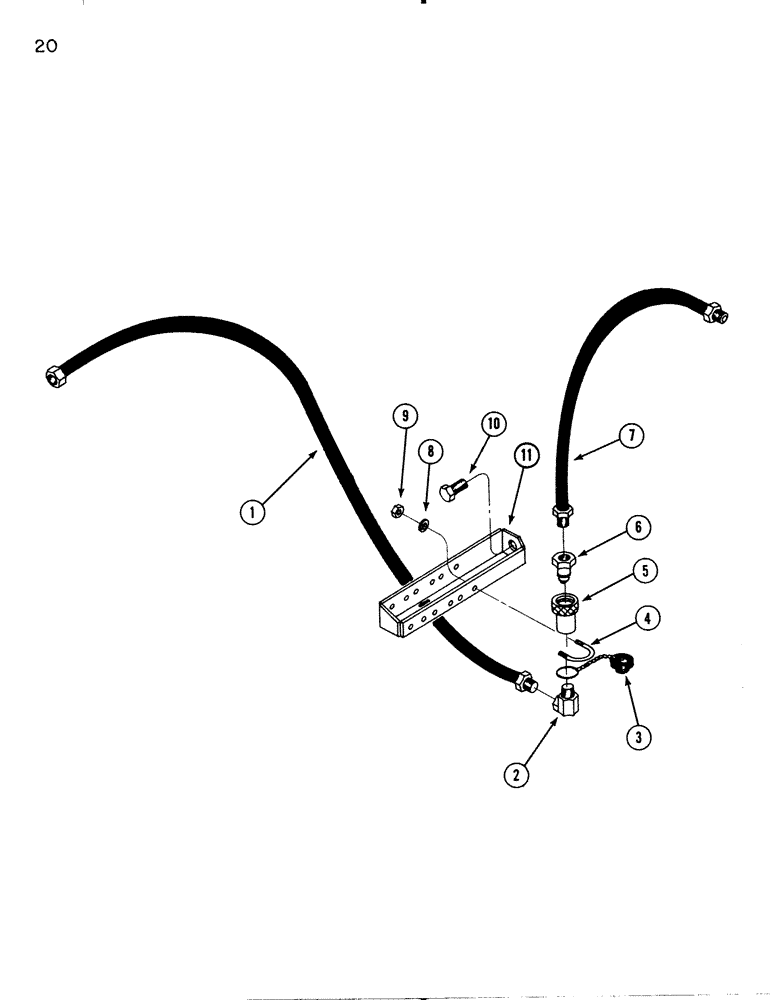

Схема запчастей Case IH 74L - (20[1]) - HYDRAULIC REMOTE HOSES, THREE SPOOL (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

T58004

HOSE ASSY.

HOSE - 1/2 x 108" (12.7 x 2743.2 mm)

2шт.

2

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 Deg. x 1/2" pipe

2шт.

3

T57615

PLUG

- coupler

2шт.

4

A66788

CLAMP

- 1/4" U

2шт.

5

H049718

COUPLER - female

2шт.

6

G049726

COUPLER - male

2шт.

7

T57997

HOSE ASSY.

HOSE - 1/2 x 72" (12.7 x 1828.8 mm)

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

10

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

11

T58025

MOUNTING PARTS

BRACKET - quick coupler

1шт.

Выбрано товаров: 11
