Запчасти Case IH 74L (18) - REMOTE OIL SUPPLY TO LOADER VALVE (35) - HYDRAULIC SYSTEMS

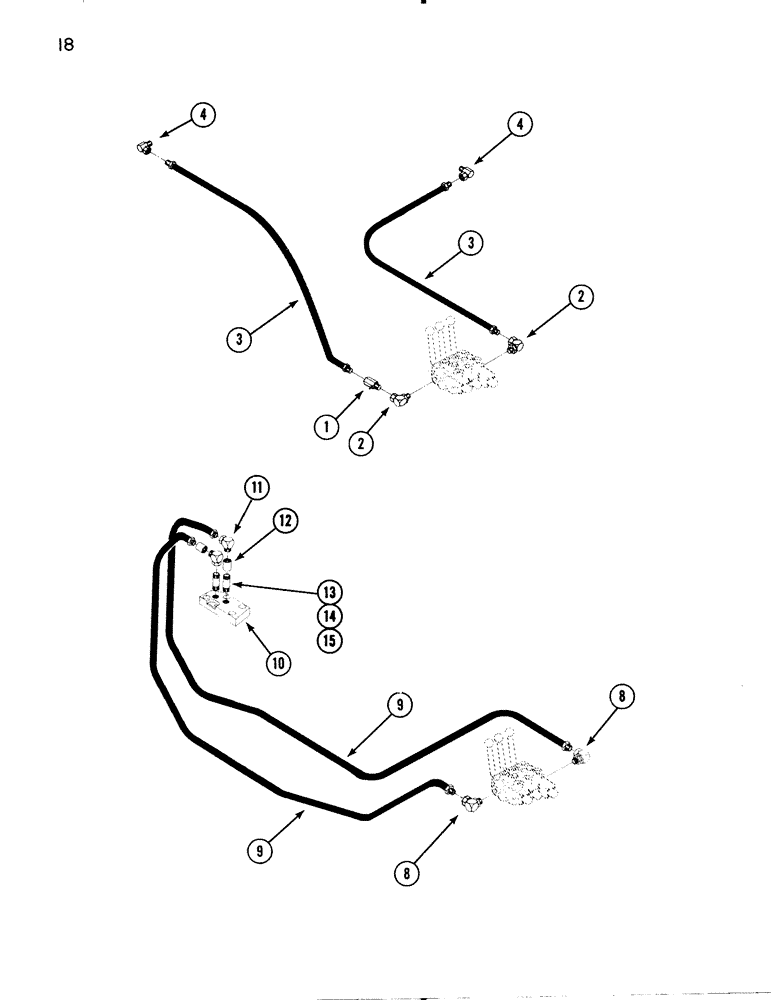

Схема запчастей Case IH 74L - (18) - REMOTE OIL SUPPLY TO LOADER VALVE (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

T53145

CHECK VALVE

VALVE - check 1/2" pipe

1шт.

2

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

FITTING - 90 x 3/4" o-ring

2шт.

3

T57629

HOSE

- 1/2 x 126" (12.7 x 3200.4 mm)

2шт.

4

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 Deg. x 1/2" pipe

2шт.

8

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

FITTING - 90 Deg. x 3/4" o-ring, power beyond oil supply to loader valve

2шт.

9

T57629

HOSE

- 1/2 x 126" (12.7 x 3200.4 mm), power beyond oil supply to loader valve

2шт.

10

T57491

COVER

BLOCK - power beyond, power beyond oil supply to loader valve

1шт.

11

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 Deg. x 1/2" pipe, power beyond oil supply to loader valve

2шт.

12

221-338

COUPLING,Pipe, 1/2" NPT

COUPLER - pipe x 1/2", power beyond oil supply to loader valve

2шт.

13

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - 1/2 x 2-1/2" (with three remote valves), power beyond oil supply to loader valve

2шт.

14

221-194

PIPE,Nipple, 1/2" NPT x 4"

NIPPLE - 1/2 x 4" (with two remote valves), power beyond oil supply to loader valve

2шт.

15

221-199

NIPPLE - 1/2 x 5-1/2" (with one remote valve), power beyond oil supply to loader valve Nipple, 1/2" NPT x 6 1/2"

2шт.

Выбрано товаров: 12
