Запчасти Case IH 74L (16) - TWO SPOOL VALVE AND HOSES (35) - HYDRAULIC SYSTEMS

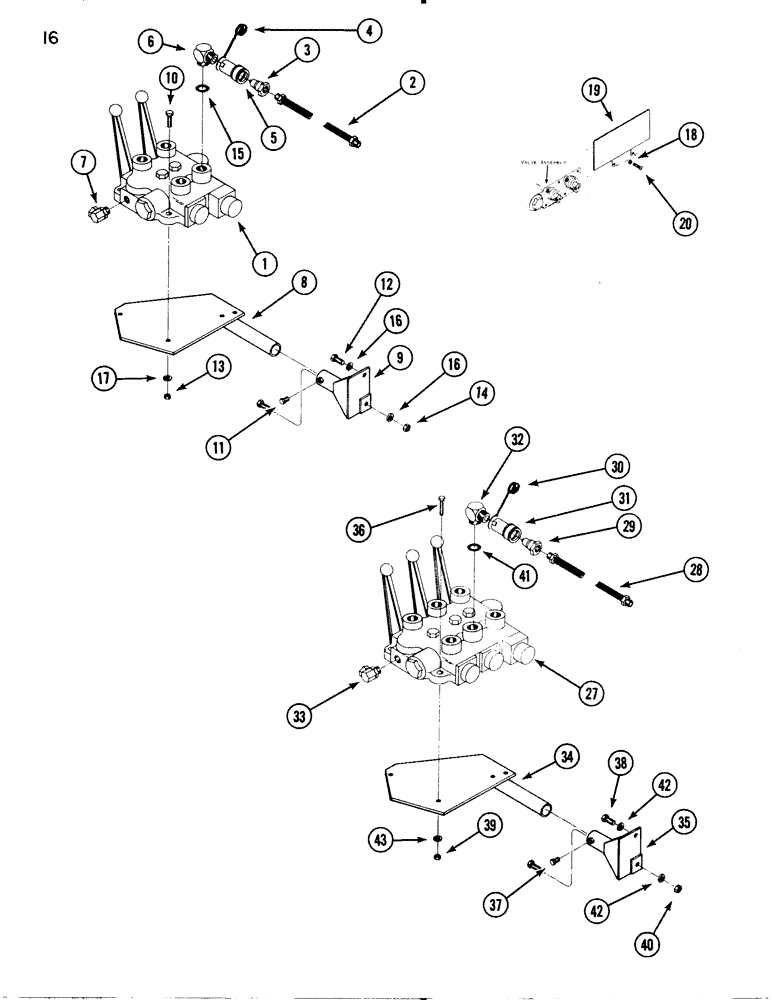

Схема запчастей Case IH 74L - (16) - TWO SPOOL VALVE AND HOSES (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

T57496

VALVE

control (See Figure 31)

1шт.

2

T57997

HOSE ASSY.

1/2 x 72" (12.7 x 1828.8 mm)

4шт.

3

G049726

COUPLER - female quick

4шт.

4

T57615

PLUG

quick coupler

4шт.

5

G049718

COUPLER - female quick

4шт.

6

T57832

FITTING

90 Deg. o-ring

4шт.

7

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

90 Deg.

4шт.

8

T57995

MOUNTING PARTS

valve upper

1шт.

9

T57996

MOUNTING PARTS

valve lower

1шт.

10

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

12

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

14

129-107

NUT,5/8"-11, G5

1шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

19

T57543

MOUNTING PARTS

decal, 3 spool valve & hoses

1шт.

20

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

machine 1/4 x 1/2" NC pan head, 3 spool valve & hoses

2шт.

27

T57495

VALVE

control (See Figure 33), 3 spool valve & hoses

1шт.

28

T57997

HOSE ASSY.

1/2 x 72" (12.7 x 1828.8 mm), 3 spool valve & hoses

6шт.

29

G049726

COUPLER - male quick, 3 spool valve & hoses

6шт.

30

T57615

PLUG

quick coupler, 3 spool valve & hoses

6шт.

31

H049718

COUPLER - female quick, 3 spool valve & hoses

6шт.

32

T57832

FITTING

90 Deg. 3/4 o-ring, 3 spool valve & hoses

6шт.

33

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

90 Deg., 3 spool valve & hoses

2шт.

34

T57995

MOUNTING PARTS

valve upper, 3 spool valve & hoses

1шт.

35

T57996

MOUNTING PARTS

valve lower, 3 spool valve & hoses

1шт.

36

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3 spool valve & hoses Hex, 3/8"-16 x 2", G5

3шт.

37

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3 spool valve & hoses Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

38

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3 spool valve & hoses Hex, 5/8"-11 x 2", G5

2шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 3 spool valve & hoses 3/8"-16, G5

3шт.

40

129-107

NUT,5/8"-11, G5

3 spool valve & hoses 5/8"-11, G5

1шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 3 spool valve & hoses 5/8"

2шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 3 spool valve & hoses 3/8"

3шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm), 3 spool valve & hoses

1шт.

Выбрано товаров: 37
