Запчасти Case IH 74L (14) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

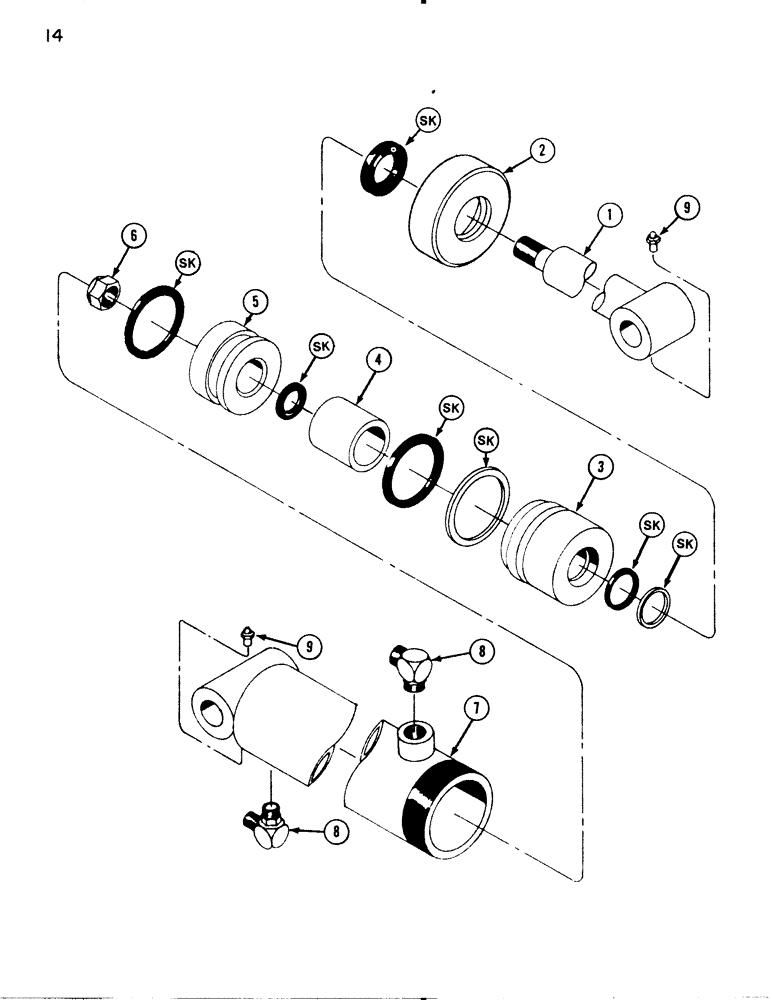

Схема запчастей Case IH 74L - (14) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

T57981

CYLINDER

- lift 2-3/4" (69.8 mm) complete, Includes: Ref. 1 - 7

2шт.

1

T57984

ROD ASSY.

ROD - piston

1шт.

2

T57992

CAP

HEAD CAP

1шт.

3

T57983

HEAD (CYLINDER)

HEAD - cylinder

1шт.

4

T55637

SPACER

1шт.

5

T57985

PISTON

1шт.

6

132-914

NUT - piston rod 1"

1шт.

7

T57982

TUBE

- cylinder

1шт.

8

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 Deg. 3/4" o-ring

4шт.

9

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

sk

T57986

SEAL KIT

- seal (includes all Refs. with SK)

1шт.

Выбрано товаров: 11
