Запчасти Case IH 74L (12) - CYLINDER ATTACHMENT (35) - HYDRAULIC SYSTEMS

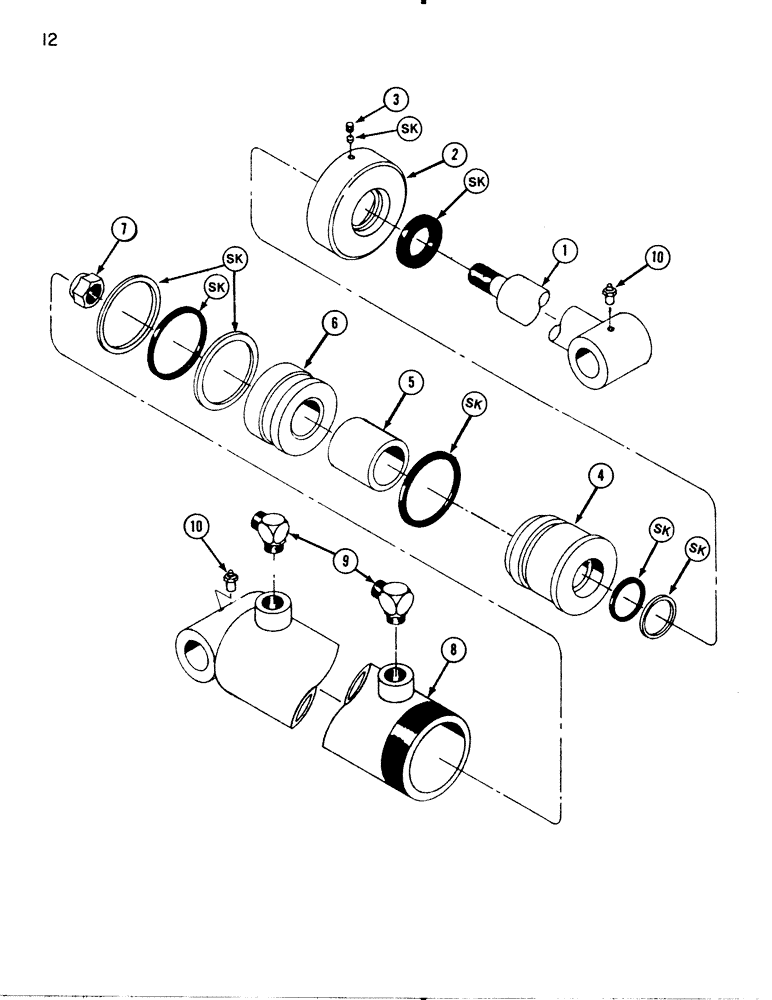

Схема запчастей Case IH 74L - (12) - CYLINDER ATTACHMENT (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

H662734

CYLINDER

- attachment 2-1/2" (63.5 mm)

2шт.

1

H662759

PISTON ROD

ROD - piston

1шт.

2

T50089

CAP

HEAD CAP

1шт.

3

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set 1/4 x 1/4" socket head

1шт.

4

T50088

HEAD

- cylinder

1шт.

5

T55637

SPACER

1шт.

6

B17273

PISTON

1шт.

7

131-909

LOCK NUT,3/4"-16

NUT - piston rod 3/4" NF

1шт.

8

H662742

TUBE ASSY.,29.94" L

TUBE - cylinder

1шт.

9

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 Deg. x 3/4" o-ring

4шт.

10

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

4шт.

sk

T51786

SEAL KIT

KIT - seal, Includes all Refs. with SK

1шт.

Выбрано товаров: 12
