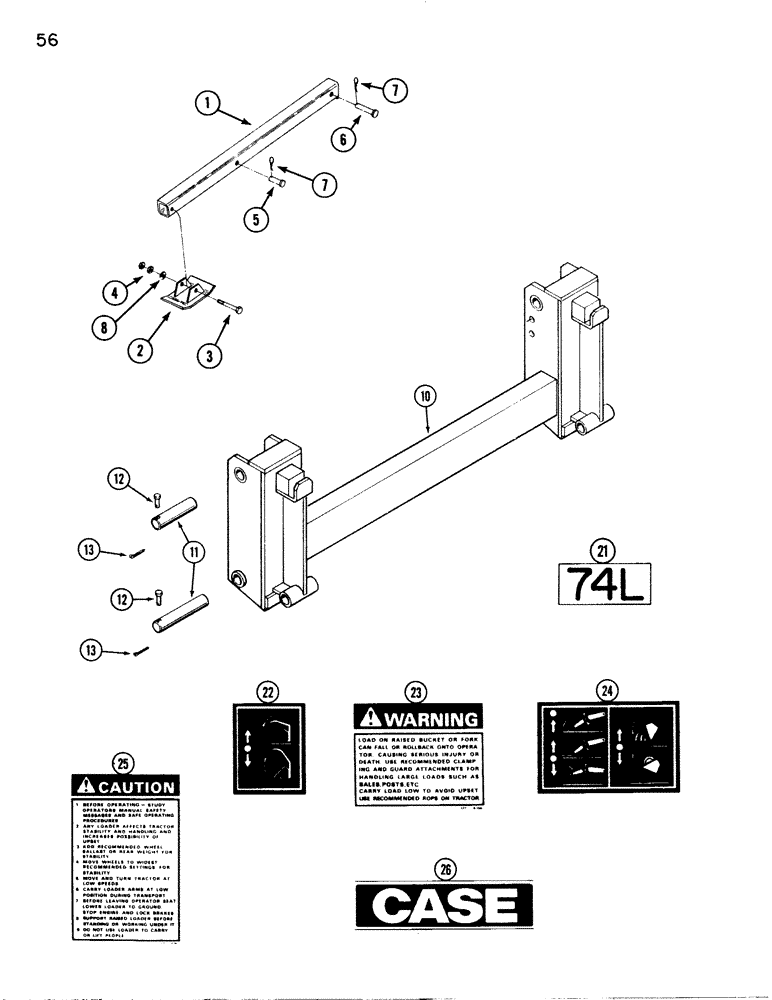

Запчасти Case IH 74L (56) - PARKING STAND (82) - FRONT LOADER & BUCKET

1

T57953

STAND

- parking

2шт.

2

T54570

FOOT

SUPPORT - stand

2шт.

3

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

5

H120683

PIN,15.88mm OD x 94.06mm L

- clevis

2шт.

6

T57966

CLEVIS PIN

PIN - clevis

2шт.

7

T54573

PIN

COTTER

4шт.

8

102-21

WASHER - lock 3/8"

2шт.

10

T88312

BRACKET - assembly connecting (Machinery Item), attachment

1шт.

11

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm), attachment bracket

4шт.

12

T50008

PIN

- clevis, attachment bracket

4шт.

13

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Attachment bracket 1/8" x 3/4"

4шт.

21

A169935

DECAL

- model 74L

2шт.

DECAL RED-A181534

1шт.

22

321-6405

DECAL

- third cylinder

1шт.

23

321-6366

DECAL

- warning

1шт.

24

321-6404

DECAL

- loader valve

1шт.

25

321-6367

DECAL

- caution

1шт.

26

A169934

DECAL

- case

1шт.

DECAL RED-A181530

1шт.
