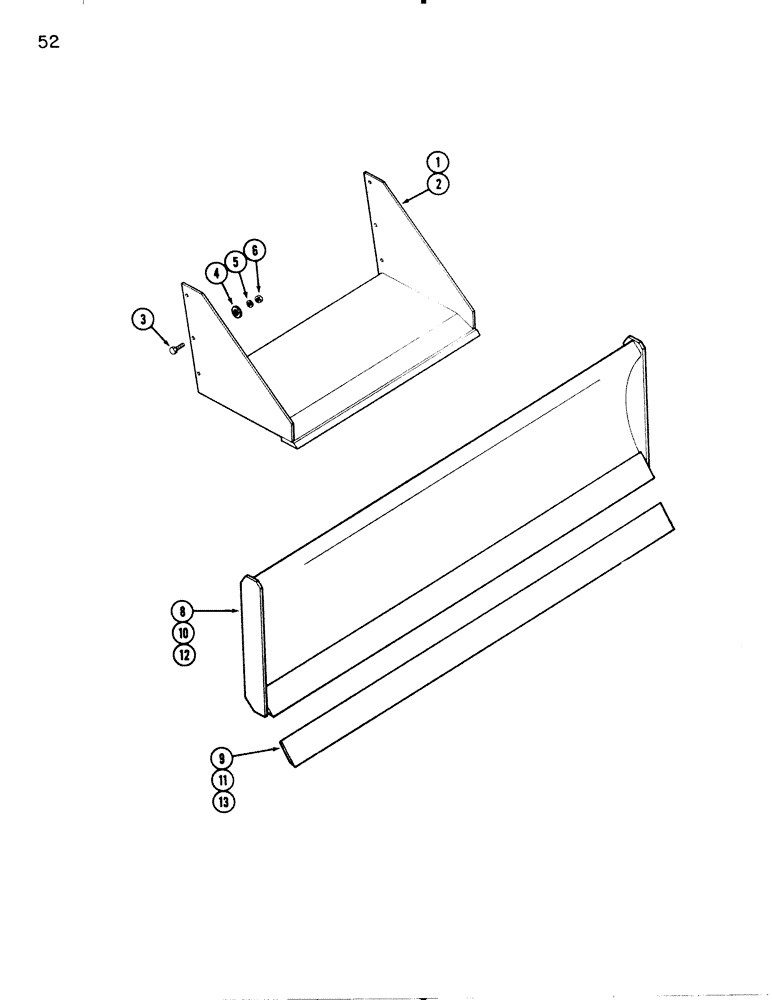

Запчасти Case IH 74L (52) - MANURE FORK DIRT PLATE, 48 INCH, 1219.2 MM (82) - FRONT LOADER & BUCKET

1

T52183

PLATE - dirt, 48" (1219.2 mm)

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

48" (1219.2 mm) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge, 48" (1219.2 mm)

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 48" (1219.2 mm) 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 48" (1219.2 mm) 3/8"-16, G5

6шт.

2

T52178

PLATE - dirt, 60" (1524.0 mm)

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

60" (1524.0 mm) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge, 60" (1524.0 mm)

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 60" (1524.0 mm) 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 60" (1524.0 mm) 3/8"-16, G5

6шт.

8

T94862

BLADE ASSEMBLY - dirt 6 foot (1.8 m) with replaceable edge (Machinery Item), dirt scrapers, Includes: Ref. 9

1шт.

9

T57065

EDGE

- replaceable 72" (1828.8 mm), dirt scrapers

1шт.

10

94863

BLADE ASSEMBLY - dirt 7 foot (2.1 m) with replaceable edge (Machinery Item), dirt scrapers, Includes: Ref. 11

1шт.

11

T50012

EDGE

- replaceable 84" (2133.6 mm), dirt scrapers

1шт.

12

T94864

BLADE ASSEMBLY - dirt 8 foot (2.4 m) with replaceable edge (Machinery Item), dirt scrapers, Includes: Ref. 13

1шт.

13

T57058

EDGE

- replaceable 96" (2438.4 mm), dirt scrapers

1шт.
