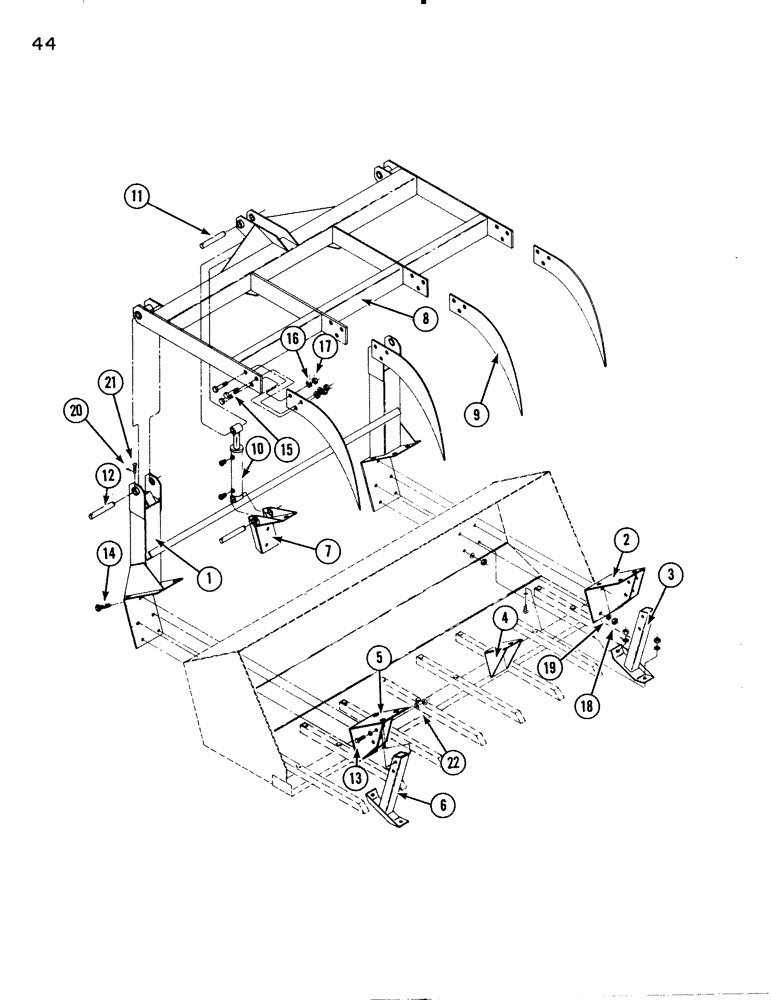

Запчасти Case IH 74L (44) - GRAPPLE FOUR TINE (82) - FRONT LOADER & BUCKET

1

T57737

PEDESTAL

- assembly

1шт.

2

T57838

SUPPORT

- left assembly

1шт.

3

T57844

SUPPORT

- left inner

1шт.

4

T57740

SUPPORT

- center assembly

1шт.

5

T57837

SUPPORT

- right assembly

1шт.

6

T57843

SUPPORT

- right inner

1шт.

7

T57839

BRACKET

- cylinder attach

1шт.

8

T57743

ARM

- swing assembly

1шт.

9

T57742

TOOTH

- plate

4шт.

10

T57744

CYLINDER

- (See Figure 47)

1шт.

11

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2" (28.6 x 114.3 mm)

1шт.

12

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

3шт.

13

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

4шт.

14

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

22шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

12шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

17

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

16шт.

18

131-1113

JAM NUT,Jam, 5/8"-11

NUT - lock 5/8" NC hex

26шт.

19

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

26шт.

20

132-46

COTTER PIN,1/8" x 3/4"

COTTER - 1/8 x 1"

4шт.

21

T50008

PIN

- clevis

4шт.

22

195-108

WASHER,5/8"

- 1-3/4" x 11/16" x 10 gauge

30шт.
