Запчасти Case IH 74L (08) - HYDRAULIC TUBES AND HOSES (35) - HYDRAULIC SYSTEMS

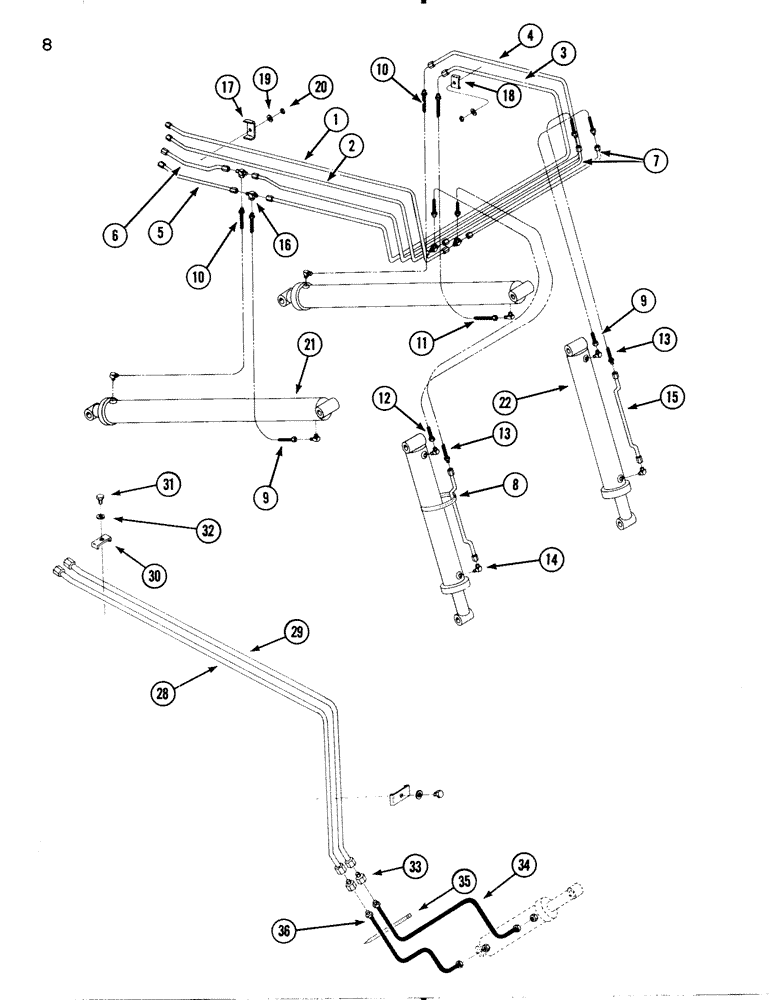

Схема запчастей Case IH 74L - (08) - HYDRAULIC TUBES AND HOSES (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

T57962

TUBE ASSY.,0.625" OD

hydraulic

1шт.

2

T57963

TUBE ASSY.,0.625" OD

hydraulic

1шт.

3

T57965

TUBE ASSY.

hydraulic

1шт.

4

T57964

TUBE ASSY.,0.625" OD

hydraulic

1шт.

5

T58032

TUBE ASSY.,0.625" OD x 10.75, 3" L

hydraulic

1шт.

6

T58033

TUBE ASSY.

hydraulic

1шт.

7

T55858

TUBE,0.625" OD x 25.5, 2.5" L

hydraulic

2шт.

8

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

cylinder

2шт.

9

T55953

HYDRAULIC HOSE

1/2 x 22" (12.7 x 558.8 mm)

2шт.

10

T57967

HOSE ASSY.

1/2 x 18-1/2" (12.7 x 469.9 mm)

2шт.

11

T55868

HOSE

1/2 x 28" (12.7 x 711.2 mm)

1шт.

12

L13746

HOSE

1/2 x 24-1/2" (12.7 x 622.3 mm)

1шт.

13

T55954

HOSE

1/2 x 21-7/8" (12.7 x 555.6 mm)

2шт.

14

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

90 deg. x 3/4 o-ring

8шт.

15

T55982

TUBE,0.625" OD x 19.187" L

hydraulic

2шт.

16

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

4шт.

17

T53116

CLAMP

tube

4шт.

18

T50064

CLAMP

tube

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

21

T57981

CYLINDER

ift (See Figure 15)

2шт.

22

H662734

CYLINDER

attachment (See Figure 13)

2шт.

Seal kit is T51786.

1шт.

28

T58003

TUBE ASSY.,0.625" OD

hydraulic, 3rd cyl. kit

1шт.

29

T58002

TUBE ASSY.

hydraulic, 3rd cyl kit

1шт.

30

T50064

CLAMP

tube, 3rd cyl kit

2шт.

31

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3rd cylinder tube kit Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 3rd cylinder tube kit 5/16"

2шт.

33

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

FITTING -7/8 x 1/2", 3rd cyl kit

2шт.

34

T58001

HOSE ASSY.

1/2 x 84" (12.7 x 2133.6 mm), 3rd cyl tube kit

1шт.

35

L11541

CABLE TIE,203.2mm L, Nylon

TIE - nylon 5/16", 3rd cyl tube kit

3шт.

36

T57486

HOSE ASSY.

1/2 x 72" (12.7 x 1828.8 mm), 3rd cyl tube kit

1шт.

Выбрано товаров: 32
