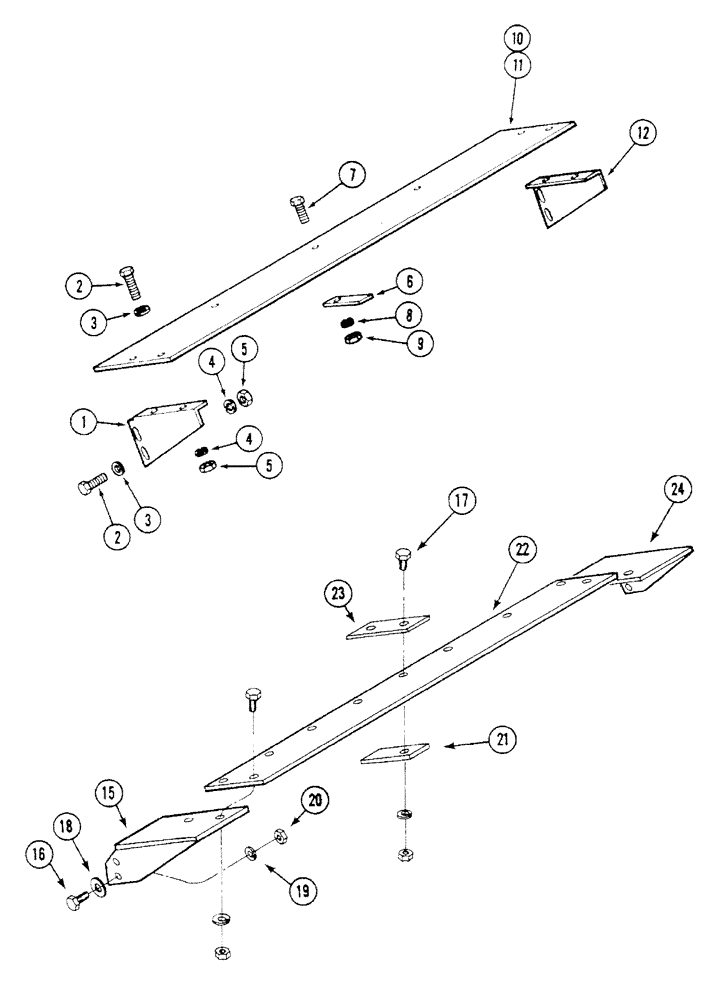

Запчасти Case IH 74L (40) - GUARD PLATES, 72 INCH, 1828.8 MM, BUCKET (82) - FRONT LOADER & BUCKET
№
Артикул
Название
Примечание
Количество
1
T50027
ANGLE
PLATE, R.H., 72 inch (1828.8 mm)
1шт.
2
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
72 inch (1828.8 mm)
8шт.
3
195-104
WASHER,3/8"
1 x 7/16" x 14 guage, 72 inch (1828.8 mm)
8шт.
4
192-21
LOCK WASHER,3/8"
72 inch (1828.8 mm)
8шт.
5
129-103
NUT,Hex, 3/8" - 16, Gr 5
72 inch (1828.8 mm)
8шт.
6
T50028
SPARE PART 72 inch (1828.8 mm)
5шт.
7
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
72 inch (1828.8 mm)
5шт.
8
192-21
LOCK WASHER,3/8"
72 inch (1828.8 mm)
5шт.
9
129-103
NUT,Hex, 3/8" - 16, Gr 5
72 inch (1828.8 mm)
5шт.
10
T50029
PLATE
guard, 72 inch (1828.8 mm)
1шт.
12
T50026
SPARE PART end L.H., 72 inch (1828.8 mm)
1шт.
1
T50027
ANGLE
PLATE end R.H., 83 inch (2108.2 mm)
1шт.
2
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
83 inch (2108.2 mm)
8шт.
3
195-104
WASHER,3/8"
1 x 7/16" x 14 guage, 83 inch (2108.2 mm)
8шт.
4
192-21
LOCK WASHER,3/8"
83 inch (2108.2 mm)
8шт.
5
129-103
NUT,Hex, 3/8" - 16, Gr 5
83 inch (2108.2 mm)
8шт.
6
T50028
SPARE PART 83 inch (2108.2 mm)
6шт.
7
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
83 inch (2108.2 mm)
6шт.
8
192-21
LOCK WASHER,3/8"
83 inch (2108.2 mm)
6шт.
9
129-103
NUT,Hex, 3/8" - 16, Gr 5
83 inch (2108.2 mm)
6шт.
11
T50030
PLATE
guard, 83 inch (2108.2 mm)
1шт.
12
T50026
SPARE PART end L.H., 83 inch (2108.2 mm)
1шт.
15
T57879
END
PLATE, R.H., 96 inch (2438.4 mm)
1шт.
16
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
96 inch (2438.4 mm)
8шт.
17
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
96 inch (2438.4 mm)
8шт.
18
195-104
WASHER,3/8"
1 x 7/16" x 14 guage, 96 inch (2438.4 mm)
8шт.
19
192-21
LOCK WASHER,3/8"
96 inch (2438.4 mm)
16шт.
20
129-103
NUT,Hex, 3/8" - 16, Gr 5
96 inch (2438.4 mm)
16шт.
21
T50028
SPARE PART 96 inch (2438.4 mm)
6шт.
22
T50030
PLATE
guard, 96 inch (2438.4 mm)
1шт.
23
T57878
BAR
mount, 96 inch (2438.4 mm)
2шт.
24
T57880
END
L.H., 96 inch (2438.4 mm)
1шт.
Выбрано товаров: 32
