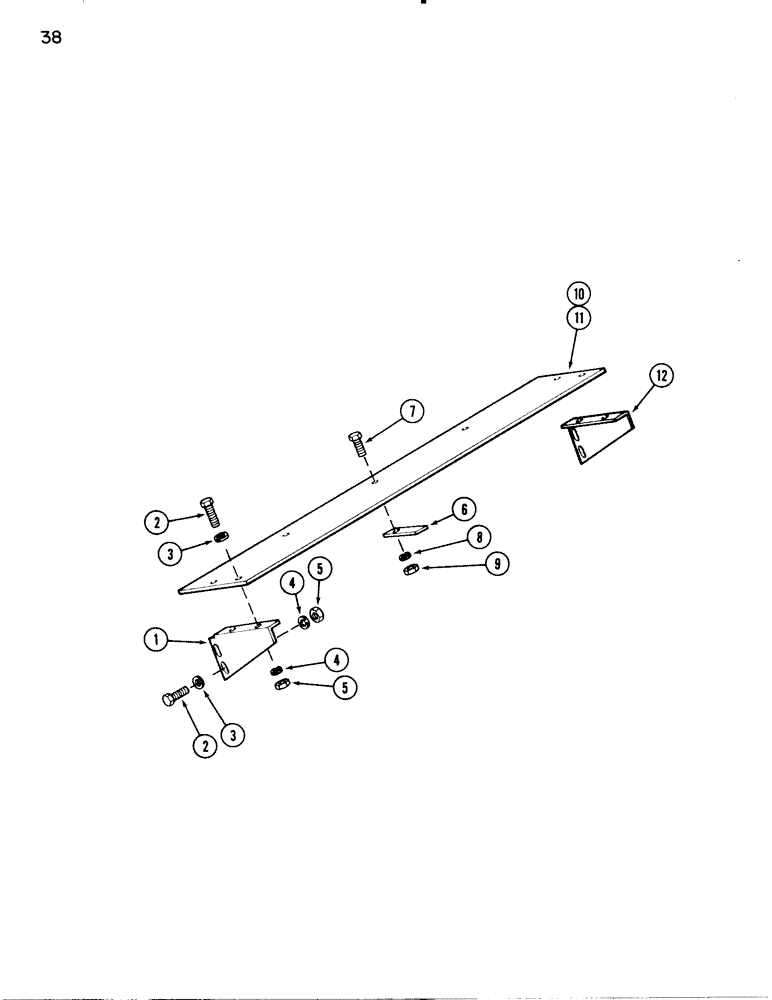

Запчасти Case IH 74L (38[1]) - GUARD PLATES, 66 INCH, 1676.4 MM, BUCKET (82) - FRONT LOADER & BUCKET

1

T50027

ANGLE

PLATE - end RH

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

3

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

6

T50028

CLAMP

5шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

11

T52180

PLATE - guard

1шт.

12

T50026

PLATE - end LH

1шт.
