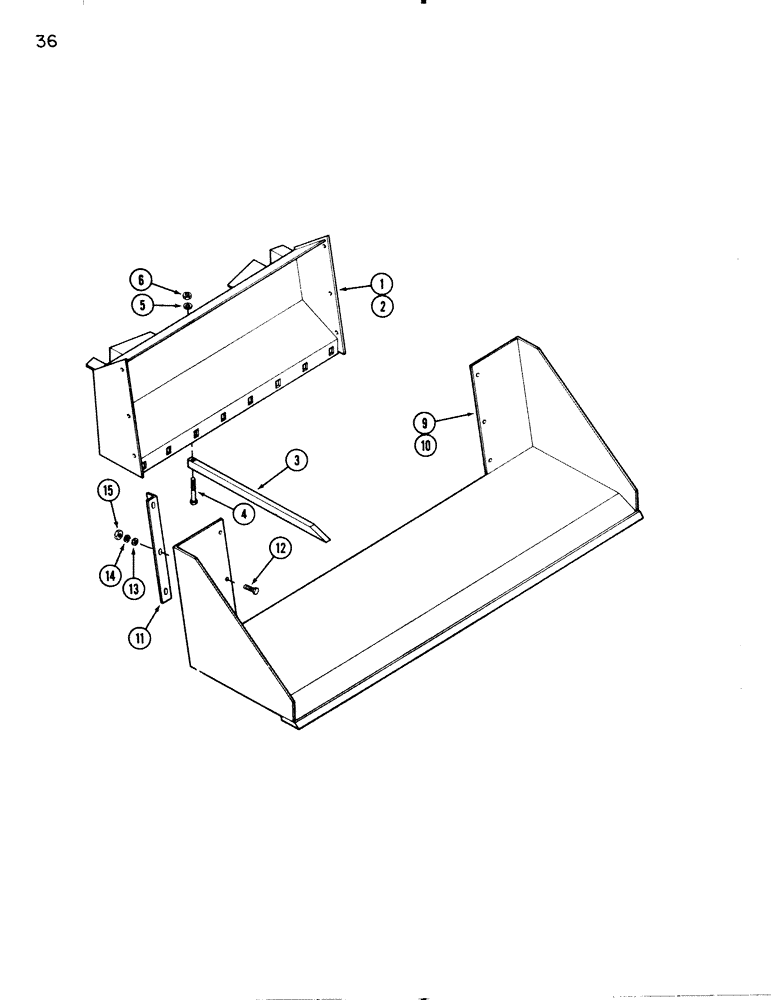

Запчасти Case IH 74L (36) - MANURE FORK (82) - FRONT LOADER & BUCKET

1

T95036

MANURE FORK ASSEMBLY - 48" (1219.2 mm) (Machinery Item), Includes: Ref. 3 - 6

1шт.

3

T50005

TINE

S - 1 x 1-1/2 x 32-13/16" (25.4 x 38.1 x 833.4 mm)

8шт.

4

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

8шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

2

T94844

MANURE FORK ASSEMBLY - 60" (1524.0 mm) (Machinery Item), Includes: Ref. 3 - 6

1шт.

3

T50005

TINE

S - 1 x 1-1/2 x 32-13/16" (25.4 x 38.1 x 833.4 mm)

10шт.

4

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

10шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

9

T95043

SNOW BUCKET ASSEMBLY - 48" (1219.2 mm) fork (Machinery Item)

1шт.

10

T94857

SNOW BUCKET ASSEMBLY - 60" (1524.0 mm) fork (Machinery Item), Includes: Ref. 11 - 15

1шт.

11

T50010

ANGLE

snow bucket attachment

2шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Snow bucket attachment Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

13

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge, snow bucket attachment

12шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Snow bucket attachment 3/8"

12шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Snow bucket attachment 3/8"-16, G5

12шт.
