(34) - MATERIAL BUCKET WITH TINES

Запчасти Case IH 74L (34) - MATERIAL BUCKET WITH TINES (82) - FRONT LOADER & BUCKET

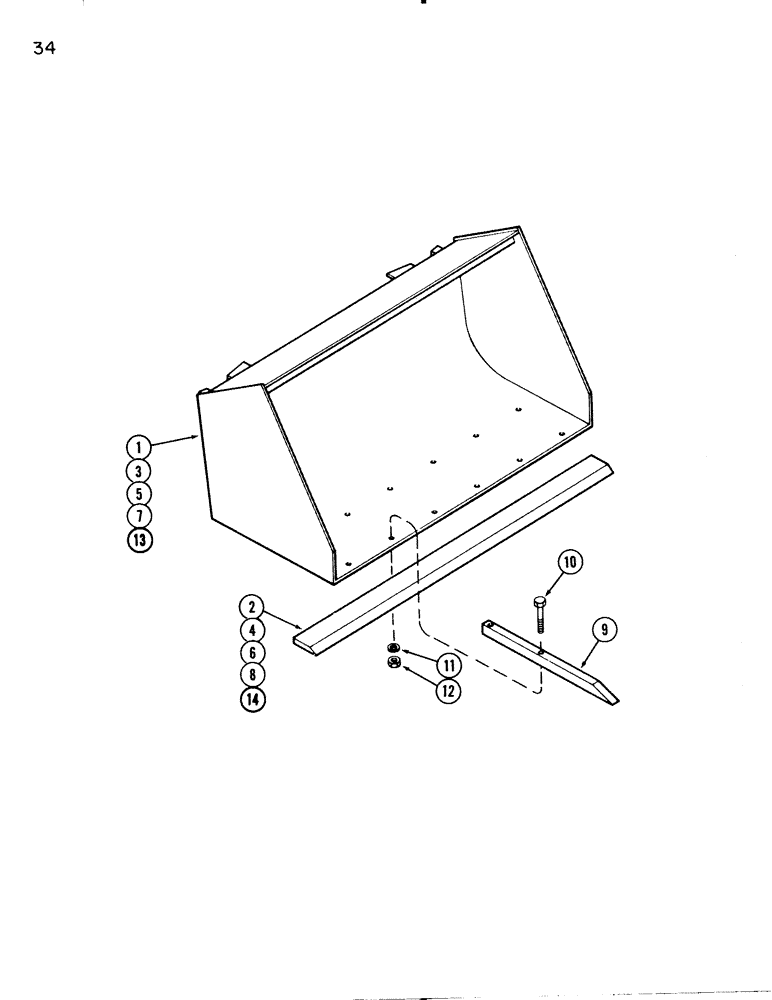

Схема запчастей Case IH 74L - (34) - MATERIAL BUCKET WITH TINES (82) - FRONT LOADER & BUCKET
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T95607

BUCKET ASSEMBLY - 60" (1524.0 mm) drilled for tines with replaceable edge with rivets (Machinery Item), Includes: Ref. 2

1шт.

2

T50013

EDGE

- replaceable 68" (1727.2 mm)

1шт.

9

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 60" (1524.0 mm) bucket (Machinery Item), Includes: Ref. 10 - 12

8шт.

10

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

3

T95608

BUCKET ASSEMBLY - 66" (1676.4 mm) drilled for tines with replaceable edge with rivets (Machinery Item), Includes: Ref. 4

1шт.

4

T52179

EDGE

- replaceable 74" (1879.6 mm)

1шт.

9

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 66" (16.76.4 mm) bucket (Machinery Item), Includes: Ref. 10 - 12

8шт.

10

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

5

T95609

BUCKET ASSEMBLY - 72" (18.28.8 mm) drilled for tines with replaceable edge with rivets (Machinery Item), Includes: Ref. 6

1шт.

6

T50014

EDGE

- replaceable 80" (2032.0 mm)

1шт.

9

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 72" (1828.8 mm) bucket (Machinery Item), Includes: Ref. 10 - 12

8шт.

10

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

7

T95610

BUCKET ASSEMBLY - 83" (2108.2 mm) drilled for tines with replaceable edge with rivets (Machinery Item), Includes: Ref. 8

1шт.

8

T50015

EDGE

- replaceable 91" (2311.4 mm)

1шт.

9

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 83" (2108.2 mm) bucket (Machinery Item), Includes: Ref. 10 - 12

10шт.

10

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

13

T95611

BUCKET ASSEMBLY - 96" (2438.4 mm) drilled for tines with replaceable edge with rivets (Machinery Item), Includes: Ref. 14, 10, 11 and 12

1шт.

14

T53865

EDGE

- replaceable 104" (2141.6 mm)

1шт.

10

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

T57929

RIVET - plugs drilled holes (not illustrated)

1шт.

T51043

TINE

single

1шт.

T50015

EDGE

bucket, heavy duty, 83"

1шт.
