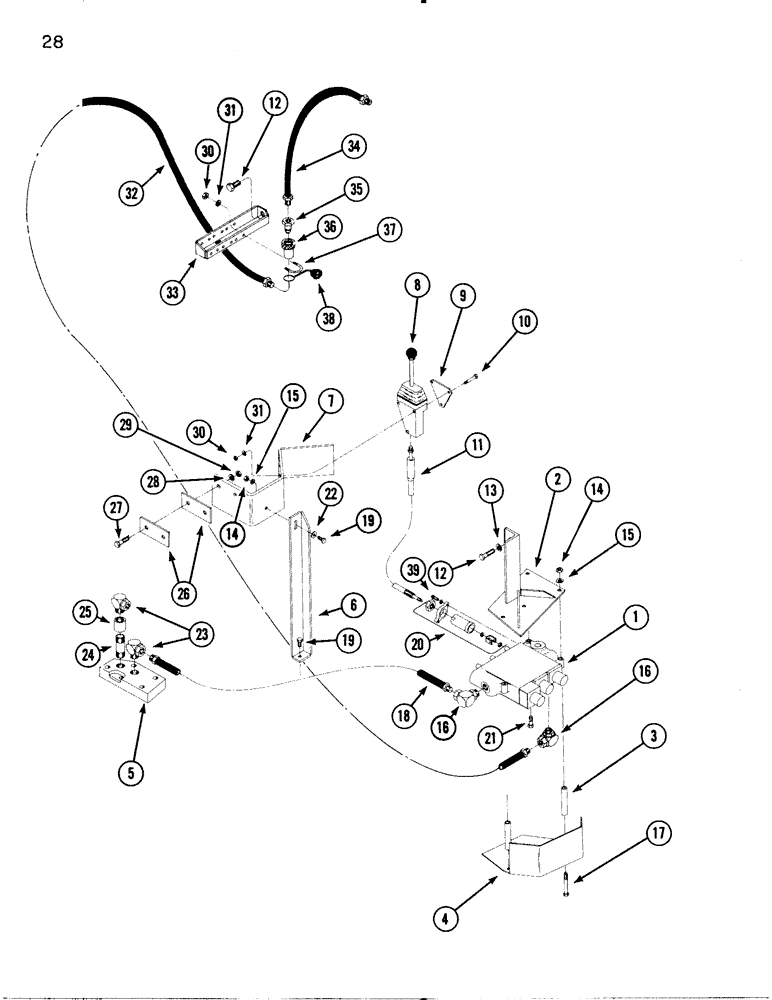

Запчасти Case IH 74L (28) - CABLE CONTROL, 90 SERIES, THREE SPOOL (82) - FRONT LOADER & BUCKET

1

T57495

VALVE

- control (See Figure 33)

1шт.

2

T58022

MOUNTING PARTS

MOUNT - valve assembly

1шт.

3

T57607

BUSHING

- spacer

2шт.

4

T57609

MOUNTING PARTS

MOUNT - valve cover

1шт.

5

T57491

COVER

BLOCK - power beyond

1шт.

6

T57874

SUPPORT

- control handle assembly

1шт.

7

T57588

MOUNTING PARTS

MOUNT - handle assembly

1шт.

8

T57583

CONTROL

HANDLE - control assembly

3шт.

9

T57587

BAR

- spacer handle

2шт.

10

113-73

BOLT,Hex, 1/4" - 20 x 6-1/2", Gr 5

- 1/4 x 6-1/2" NC hex (Grade 5)

3шт.

11

T57584

CABLE

- 5 ft. RVC

3шт.

12

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

3шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

16

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

FITTING - 90 Deg. o-ring

8шт.

17

113-2239

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

- 3/8 x 5-3/4" NC hex (Grade 5)

2шт.

18

T57059

HOSE

- 1/2 x 108" (12.7 x 2743.2 mm)

2шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

20

T57586

KIT

- adaptor cable

3шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

22

195-104

WASHER,3/8"

- 7/16 x 1" x 15 gauge

1шт.

23

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 Deg. x 1/2" pipe

2шт.

24

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - 1/2" x 2-1/2"

1шт.

25

221-338

COUPLING,Pipe, 1/2" NPT

COUPLER - 1/2"

1шт.

26

T57585

BAR

- spacer support

2шт.

27

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

15шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

19шт.

32

T58024

HOSE ASSY.

HOSE - 1/2 x 43" (12.7 x 1092.2 mm)

6шт.

33

T58025

MOUNTING PARTS

MOUNT - quick coupler

1шт.

34

T57997

HOSE ASSY.

HOSE - 1/2 x 72" (12.7 x 1828.8 mm)

6шт.

35

H049726

COUPLER - male

6шт.

36

H049718

COUPLER - female

6шт.

37

A66788

CLAMP

- 1/4" U

6шт.

38

T57615

PLUG

- coupler

6шт.

39

182-206

SCREW - 1/4 x 1" NC round

6шт.
