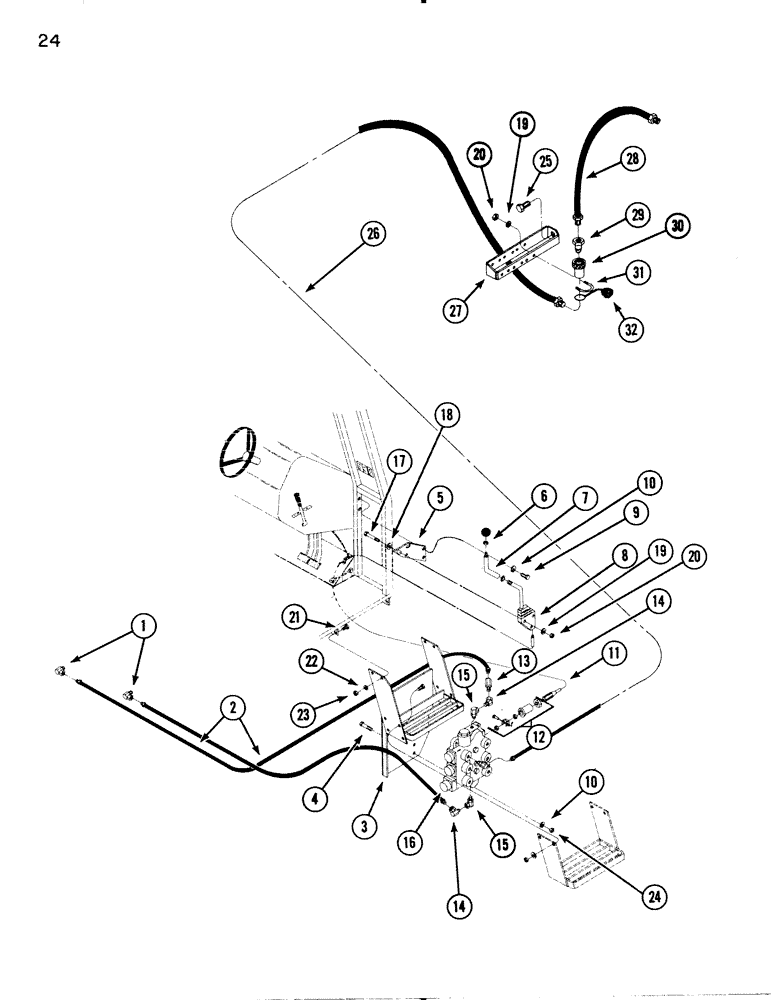

Запчасти Case IH 74L (24) - CABLE CONTROL, 94 SERIES, THREE SPOOL (82) - FRONT LOADER & BUCKET

1

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 Deg. x 1/2" pipe

2шт.

2

T57059

HOSE

- 1/2 x 108" (12.7 x 2743.2 mm)

2шт.

3

T58026

MOUNTING PARTS

MOUNT - valve and step

1шт.

4

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

5

T58027

MOUNTING PARTS

MOUNT - handle

1шт.

6

129-123

NUT,3/8"-24, G5

3шт.

7

T58028

EXTENSION

- handle

3шт.

8

T58029

HANDLE

- control assembly

3шт.

9

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

11

T57584

CABLE

- 5 ft RVC

3шт.

12

T57586

KIT

- adaptor cable

3шт.

13

T53145

CHECK VALVE

VALVE - check

1шт.

14

T57942

FITTING

- 45 Deg. 1/2" pipe

4шт.

15

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

FITTING - 90 Deg. o-ring

8шт.

16

T57495

VALVE

- control (See Figure 33)

1шт.

17

113-52

BOLT,Hex, 1/4" - 20 x 6", Gr 5

3шт.

18

195-102

WASHER,1/4"

- 5/16 x 3/4" x 15 gauge

3шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

21шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

15шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

23

9635082

NUT,5/16" - 18, Gr 5

8шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

25

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

26

T57489

HOSE

- 1/2 x 36" (12.7 x 914.4 mm)

6шт.

27

T58025

MOUNTING PARTS

BRACKET - quick coupler

1шт.

28

T57997

HOSE ASSY.

HOSE - 1/2 x 72" (12.7 x 1828.8 mm)

6шт.

29

H049718

COUPLER - male

6шт.

30

G049718

COUPLER - female

6шт.

31

A66788

CLAMP

- 1/4" U

6шт.

32

T57615

PLUG

- coupler

6шт.
