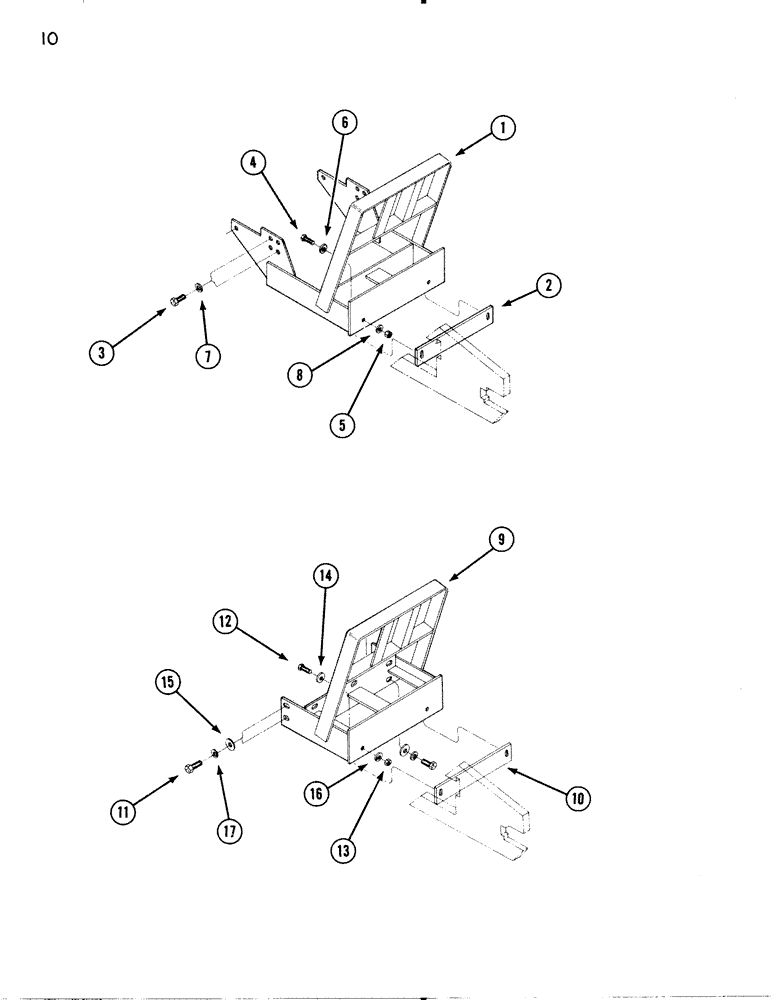

Запчасти Case IH 74L (10) - GRILL GUARD, 1390 AND 1394 (82) - FRONT LOADER & BUCKET

1

T57998

GUARD

grill assembly

1шт.

2

T57949

BAR

weight

1шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

4

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

2шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

T58000

GUARD

grill assembly, (1490, 1494, 1594 & 1690)

1шт.

10

T57949

BAR

weight, grill guard (1490, 1494, 1594 & 1690)

1шт.

11

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

Grill guard (1490, 1494, 1594 & 1690) Hex, 5/8"-11 x 1 3/4", G5

10шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Grill guard (1490, 1494, 1594 & 1690) Hex, 1/2"-13 x 2", G5

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

Grill guard (1490, 1494, 1594 & 1690) 1/2"-13, G5

2шт.

14

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge, grill guard (1490, 1494, 1594 & 1690)

2шт.

15

195-108

WASHER,5/8"

1-3/4 x 11/16" x 10 gauge, grill guard (1490, 1494, 1594 & 1690)

10шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Grill guard (1490, 1494, 1594 & 1690) 1/2"

2шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Grill guard (1490, 1494, 1594 & 1690) 5/8"

10шт.
