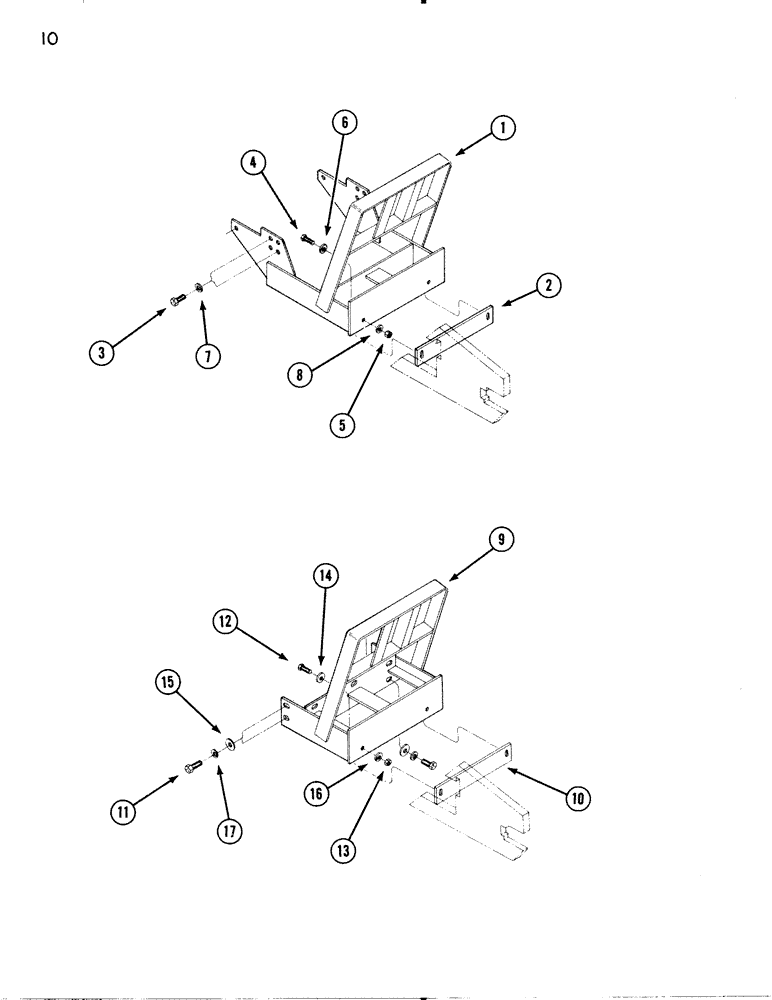

Запчасти Case IH 74L (10[1]) - GRILL GUARD, 1490, 1494, 1594, AND 1690 (82) - FRONT LOADER & BUCKET

1

T57998

GUARD

- grill assembly

1шт.

2

T57949

BAR

- weight

1шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

4

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

2шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

T58000

GUARD

- grill assembly

1шт.

10

T57949

BAR

- weight

1шт.

11

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

10шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

2шт.

15

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

10шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.
