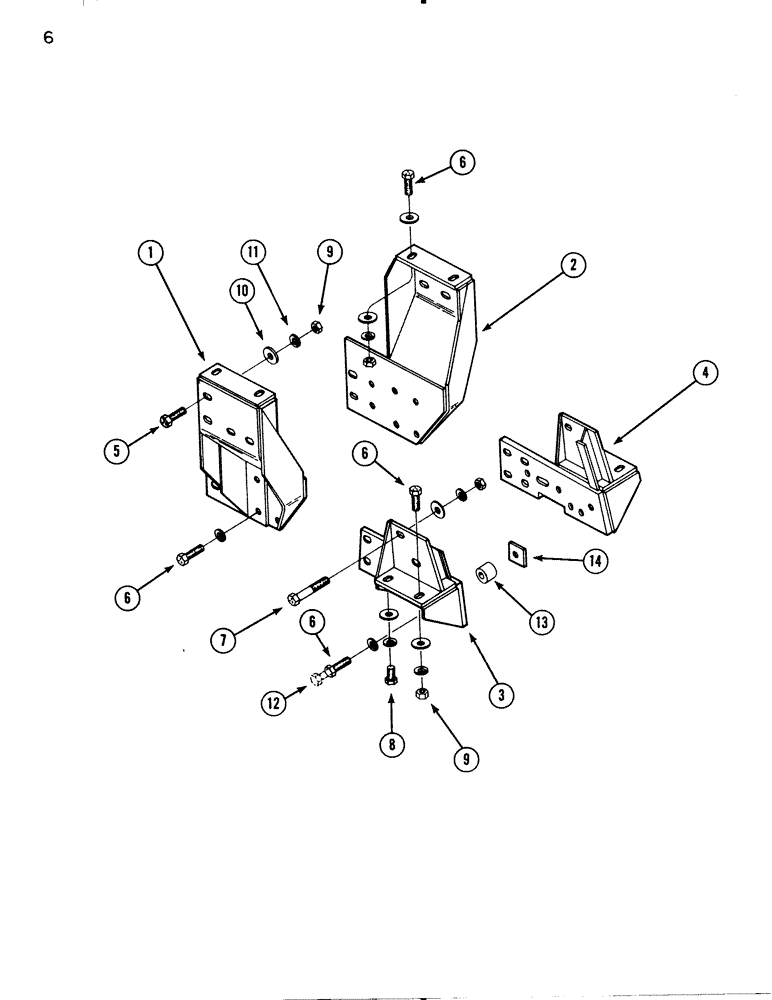

Запчасти Case IH 74L (06) - MOUNTING BRACKETS (82) - FRONT LOADER & BUCKET

1

T57977

BRACKET

- mounting right rear

1шт.

2

T57978

BRACKET

- mounting left rear

1шт.

3

T57979

BRACKET

- mounting right front

1шт.

4

T57980

BRACKET

- mounting left front

1шт.

5

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

26шт.

7

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex (Grade 5)

4шт.

8

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

9

131-70

NUT,1/2"-13, GB

NUT - lock 5/8" NC hex

18шт.

10

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4 x 11/16" x 10 gauge

34шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

42шт.

12

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(1394 only) Hex, 5/8"-11 x 3", G5

2шт.

13

T57954

BUSHING

- spacer (1394 only)

2шт.

14

T57955

BAR

- spacer (1394 only)

2шт.
