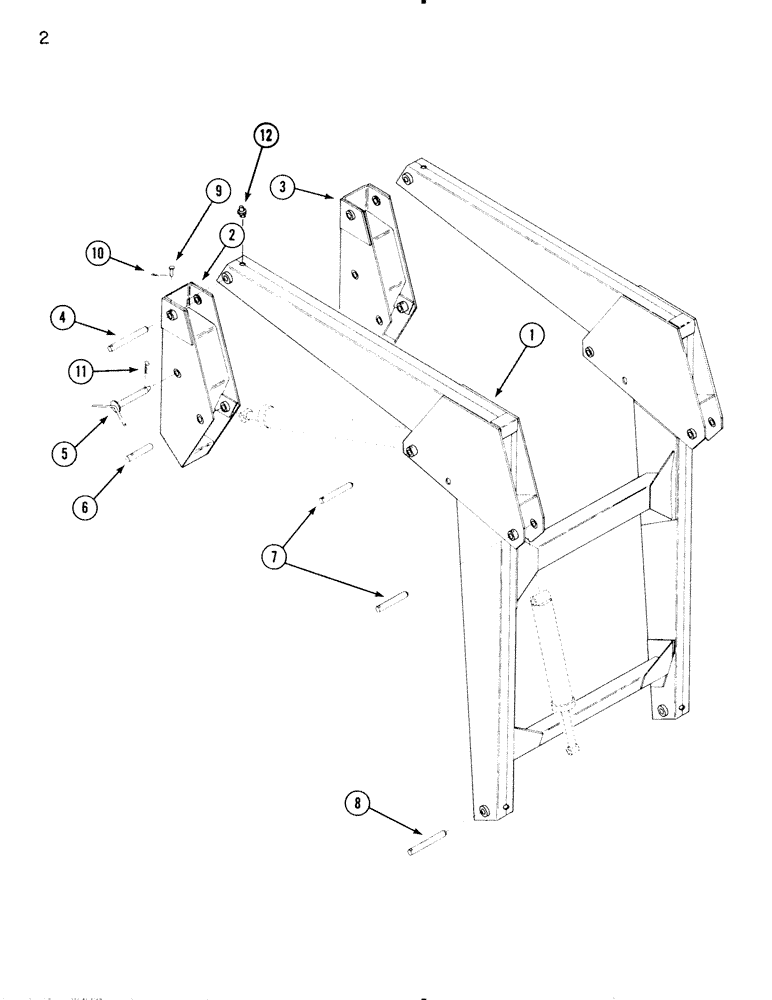

Запчасти Case IH 74L (02A) - MAINFRAME, PEDESTAL AND PINS (82) - FRONT LOADER & BUCKET

1

T57972

FRAME

- main

1шт.

2

T57974

PEDESTAL

- right

1шт.

3

T57973

PEDESTAL

- left

1шт.

4

T57959

PIN

- 1-1/8 x 7" (28.6 x 177.8 mm)

2шт.

5

T57960

PIN ASSY.

PIN - assembly (Replaces T57958)

2шт.

6

T57971

PIN

- 1-1/8 x 4-7/8" (28.6 x 123.8 mm)

2шт.

7

T57970

PIN

- 1-1/8 x 5-7/8" (28.6 x 199.2 mm)

4шт.

8

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

4шт.

9

T50008

PIN

- clevis

12шт.

10

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

12шт.

11

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), Int, 7/16" x .177"

2шт.

12

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.
