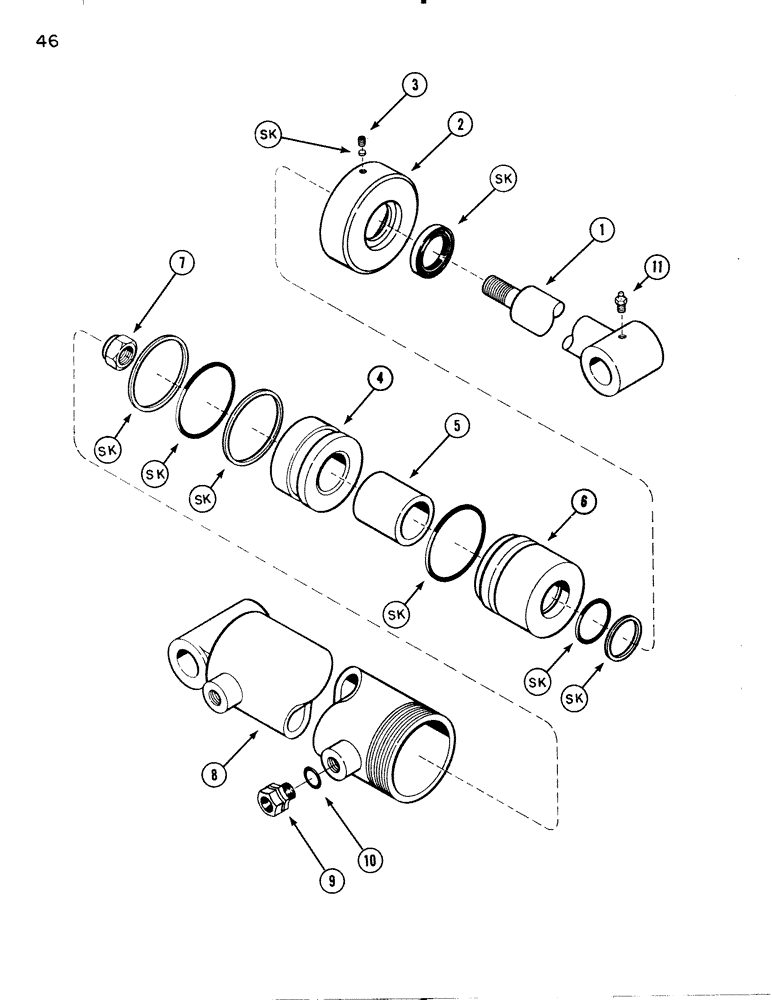

Запчасти Case IH 74L (46) - CYLINDER GRAPPLE (35) - HYDRAULIC SYSTEMS

T57744

CYLINDER

- hydraulic 2-1/2" (63.55 mm) complete, Includes: Ref. 1 - 8

1шт.

1

T57745

ROD

- piston

1шт.

2

T50089

CAP

HEAD CAP

1шт.

3

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4 x 1/4" socket head

1шт.

4

T50090

PISTON

1шт.

5

T58030

SPACER

1шт.

NOT USED IN CYL.

1шт.

6

T50088

HEAD

- cylinder

1шт.

7

T50096

NUT - piston rod 3/4" NF

1шт.

8

T57746

TUBE

- cylinder

1шт.

9

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

FITTING - straight, Includes: Ref. 10

2шт.

T51786

SEAL KIT

KIT - seal (Includes all Refs. with SK)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
