Запчасти Case IH 74L (32) - THREE SPOOL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

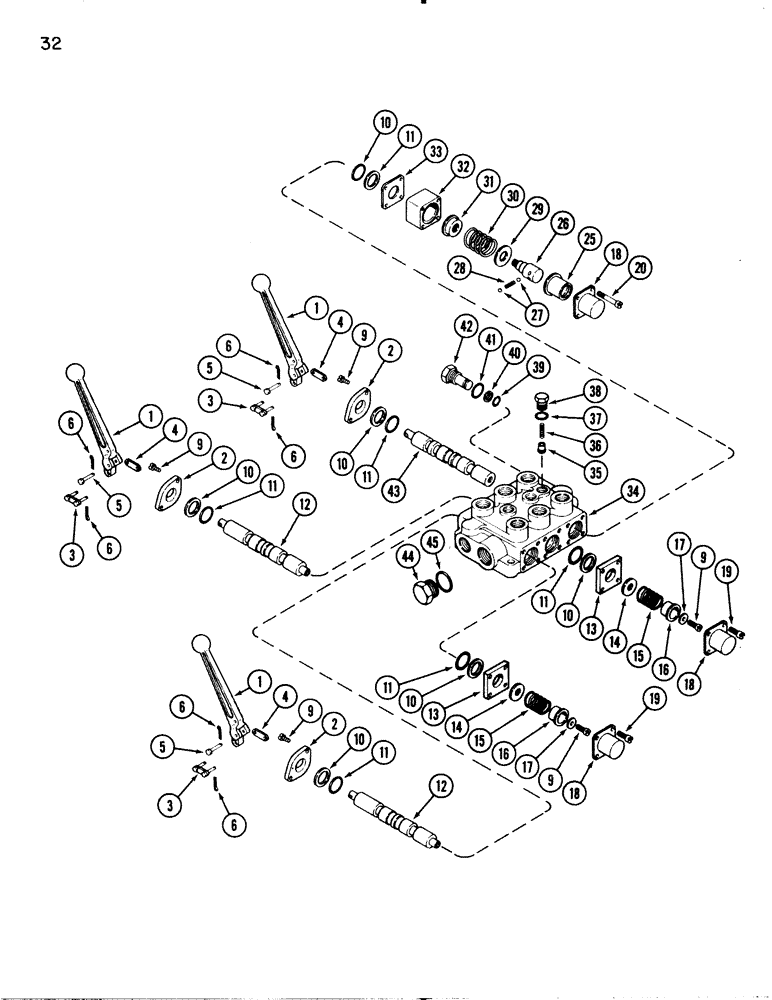

Схема запчастей Case IH 74L - (32) - THREE SPOOL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

T57495

VALVE

- control 3 spool complete, Includes: Ref. 1 - 45

1шт.

B17217

KIT

HANDLE ASSEMBLY - control with bracket (Not illustrated), Includes: Ref. 1 - 45

3шт.

1

B17216

HANDLE

- control

1шт.

2

B17218

BRACKET

- handle

1шт.

B17215

PIN

KIT - pin (Not illustrated), Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY - handle

1шт.

4

W13738

LINK

- handle

1шт.

5

W13867

CLEVIS

PIN - clevis

1шт.

6

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

9

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - machine 1/4 x 1/2" NC

8шт.

10

D54585

WASHER

- special

6шт.

11

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- 1-1/4 x 1 x 1/8" (31.8 x 25.4 x 3.2 mm)

6шт.

12

NSS

NOT SOLD SEPARAT

SPOOL

2шт.

13

D54583

SPACER

2шт.

14

195-2200

WASHER

- 1-1/4 x 1/2" x 12 gauge

2шт.

15

D54586

SPRING

- centering

2шт.

16

D54581

COLLAR CLAMP

COLLAR - spool

2шт.

17

195-102

WASHER,1/4"

- 3/4 x 5/16" x 16 gauge

2шт.

18

D54582

CYLINDER END CAP

CAP - end

3шт.

19

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- machine 1/4 x 3/4" NC

8шт.

20

61-428

HEX SOC SCREW,1/4"-20 x 1 3/4"

SCREW - machine 1/4 x 1-3/4" NC

4шт.

25

T53392

SLEEVE

- float detent

1шт.

26

T53391

RETAINER

- float detent

1шт.

27

211-357

BALL,1/4" Dia

- steel 1/4"

4шт.

28

W13743

VALVE SPRING

SPRING - detent

2шт.

29

T53390

SPACER

WASHER - float stop

1шт.

30

R30535

VALVE SPRING

SPRING - centering float

1шт.

31

R24872

SPRING SEAT

COLLAR - spool float stop

1шт.

32

T53389

SPACER

- float

1шт.

33

D54584

STOP

- end plate

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

35

D54589

VALVE

CHECK - load

3шт.

36

D54587

VALVE SPRING

SPRING - load check

3шт.

38

D54588

PLUG

- load check

3шт.

39

A65918

O-RING,0.551" ID x 0.691" OD

- no relief plug 11/16 x 9/16 x 1/16" (17.5 x 14.3 x 1.6 mm)

1шт.

40

D56904

BACK-UP RING

WASHER - backing no relief plug

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- no relief plug 15/16 x 3/4 x 3/32" (23.8 x 19.1 x 2.4 mm)

1шт.

42

D54590

PLUG

ASSEMBLY - no relief

1шт.

43

NSS

NOT SOLD SEPARAT

SPOOL - float

1шт.

44

273916

PLUG,Hex, 1-5/16" - 12 ORB

Conversion Hex Hd, 1 5/16"-12 ORB

1шт.

45

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-9/32 x 1-3/16 x 1/8" (32.5 x 30.2 x 3.2 mm)

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

3шт.

Выбрано товаров: 42
