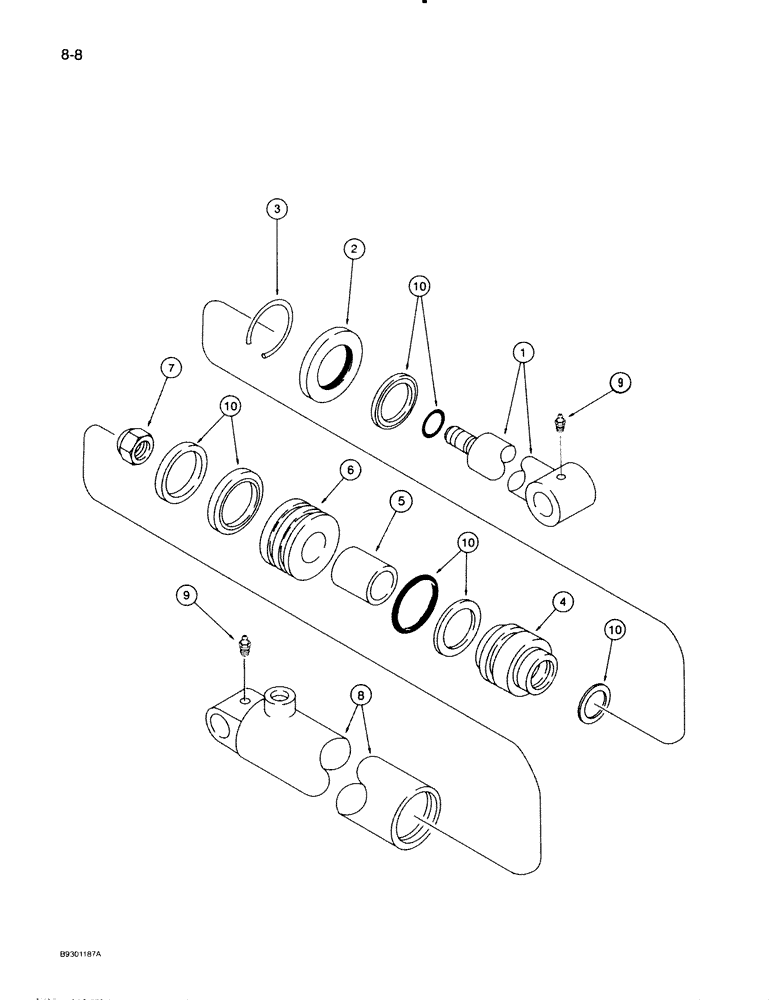

Запчасти Case IH 710 (8-08) - LIFT CYLINDER (08) - HYDRAULICS

1978778C1

CYLINDER

- lift, 3-1/4 inch, Includes: Ref. 1 - 8

2шт.

1

1978779C1

ROD ASSY.

ROD - assembly

1шт.

2

1978780C1

NUT

- retainer

1шт.

3

1978786C1

RING

- retainer

1шт.

4

1978781C1

HEAD (CYLINDER)

HEAD - cylinder

1шт.

5

1978782C1

SPACER

1шт.

6

1978783C1

PISTON

1шт.

7

1978775C1

NUT

- piston

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

9

126098

FITTING

- grease

4шт.

10

1978785C1

SEAL KIT

KIT - seal (Includes all Refs. marked 10)

1шт.
