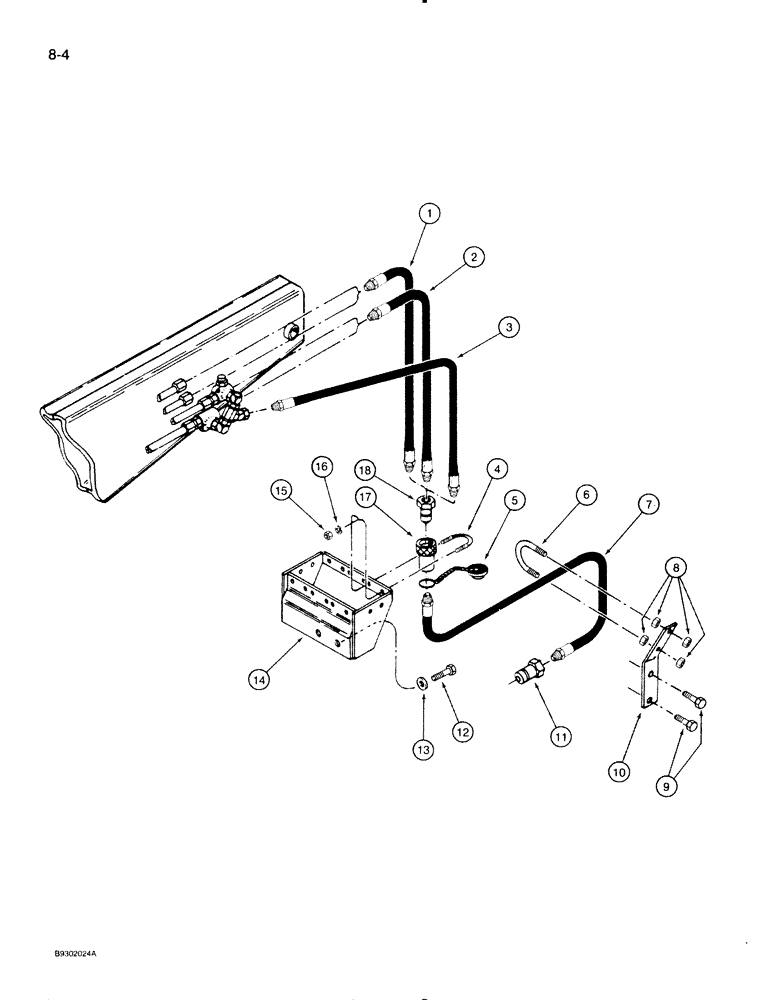

Запчасти Case IH 710 (8-04) - HOSE KIT AND MID MOUNT COUPLERS (08) - HYDRAULICS

1

1978847C1

HOSE

- 1/2 x 84 inch, 1/2 inch pipe x 7/8 inch 87 JIC

2шт.

2

1978846C1

HOSE

- 1/2 x 84 inch, 1/2 inch pipe x 3/4 inch O-ring

2шт.

3

1978848C1

HOSE

- 1/2 x 84 inch, 1/2 inch pipe x 1/2 inch pipe

1шт.

4

A66788

CLAMP

U-CLAMP - 1.41 x 2 x 1/4 inch NC

5шт.

5

T57615

PLUG

- quick coupler

5шт.

6

1978838C1

CLAMP

- hose

1шт.

7

1978849C1

HOSE

- 1/2 x 156 inch, 1/2 inch pipe - 7/8 inch O-ring

5шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

10

1978917C1

BAR

BRACKET - hose

1шт.

11

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8 - 14 thread

5шт.

12

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 x 3/4 inch NC

2шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

14

1978850C1

MOUNTING PARTS

MOUNT - coupler

1шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

10шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

17

H49718

COUPLING

COUPLER - female quick

5шт.

18

H49726

PUSH-PULL COUPLING

COUPLER - male quick

5шт.
