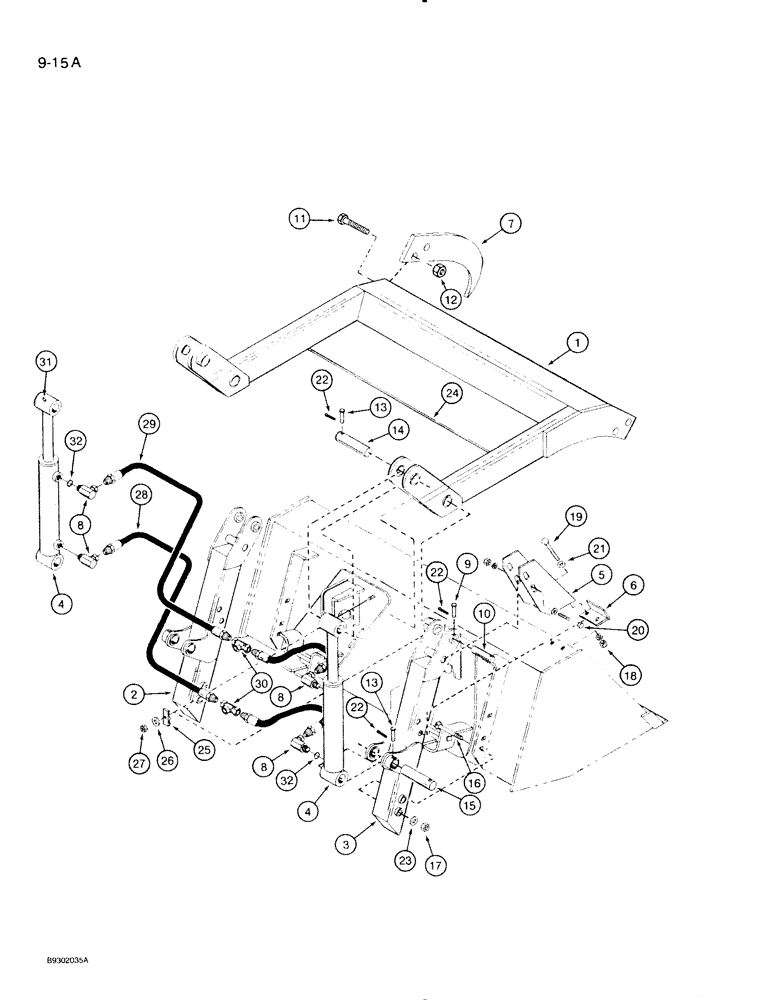

Запчасти Case IH 710 (9-15A) - GRAPPLE, FOUR TINE, FOR HIGH BACK BUCKETS, P.I.N. CJA0001736 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

105009A1

ARM ASSY.

ARM ASSEMBLY - swing

1шт.

2

105010A1

PEDESTAL

ASSEMBLY - left

1шт.

3

105011A1

PEDESTAL

ASSEMBLY - right

1шт.

4

T57744

CYLINDER

- hydraulic, 1-1/2 inch ID (See Figure 8-13)

2шт.

5

105012A1

BRACKET

SUPPORT ASSEMBLY - grapple

2шт.

6

1985064C1

ANGLE

SUPPORT - angle

2шт.

7

1985089C1

TOOTH

TINE - grapple

4шт.

8

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- 90 deg, 3/4 - 16 adj O-ring x 1/2 swivel str pipe

4шт.

9

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/2 inch, hardened

2шт.

10

T58133

HEADLESS PIN,33.34mm OD x 170mm L

PIN - 1-5/16 x 6-5/8 inch

2шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

12

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

8шт.

13

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

14

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2 inch

2шт.

15

1344768C1

HEADLESS PIN,28.57mm OD x 168mm L

PIN - 1-1/8 x 6-1/2 inch

2шт.

16

433-1088

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5

BOLT - carriage, 5/8 NC x 5-1/2 inch

6шт.

17

230-42110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 NC

6шт.

18

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 NC

8шт.

19

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, plated

4шт.

20

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

4шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

16шт.

22

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

6шт.

23

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

6шт.

24

105015A1

CABLE

ASSEMBLY - 65 inches

1шт.

25

1985061C1

INSERT

- rubber

2шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

27

231-1446

NUT,3/8" - 16, Gr 5

NUT - light hex, self-locking, 3/8 inch NC

2шт.

28

105013A1

HOSE ASSY.

HOSE - grapple, 38-1/2 inches

2шт.

29

105014A1

HOSE ASSY.

HOSE - grapple, 41-1/2 inches

2шт.

30

218-1602

UNION

FITTING - tee, 1/2 inch NPT female

2шт.

31

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

6шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

4шт.
