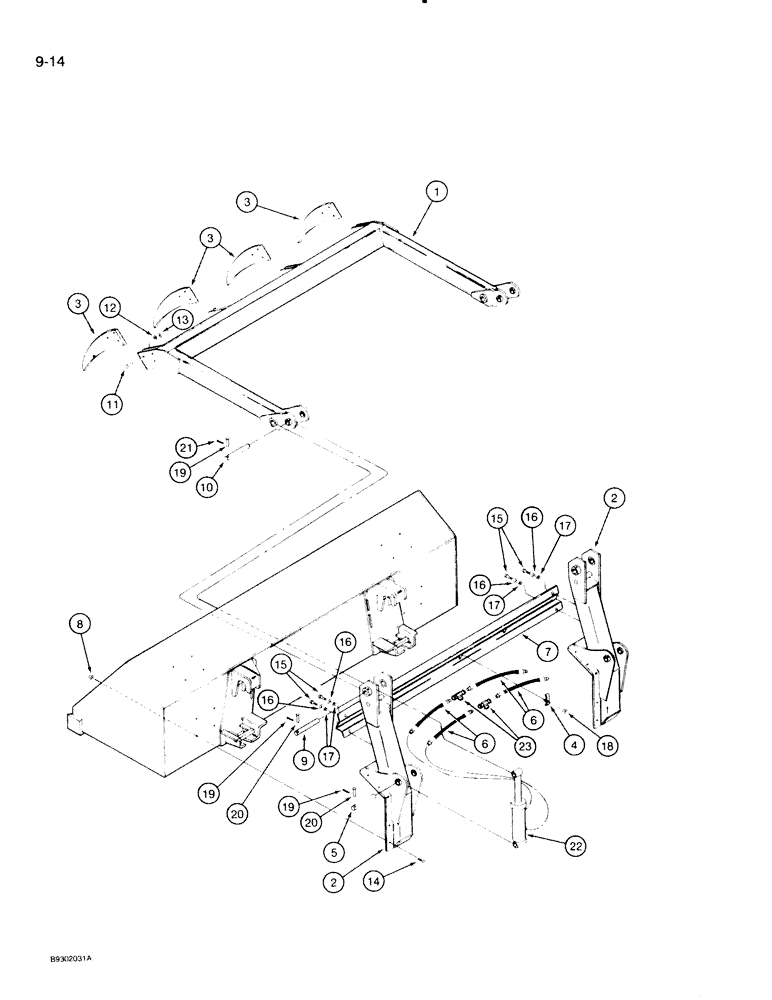

Запчасти Case IH 710 (9-14) - GRAPPLE, FOUR TINE TWO CYLINDER, FOR BUCKETS WITH BOLT-ON SPILLGUARD, PRIOR TO P.I.N. CJA0001736 (09) - CHASSIS/ATTACHMENTS

1

1344764C1

ARM ASSY.

SWING ARM ASSEMBLY

1шт.

2

1344765C1

PEDESTAL

ASSEMBLY

2шт.

3

1344766C1

FINGER

TOOTH

4шт.

4

1344767C1

TUBE

CLAMP - tube assembly

3шт.

5

1344768C1

HEADLESS PIN,28.57mm OD x 168mm L

PIN - 1-1/8 x 6-1/2 inch

2шт.

6

1344769C1

HOSE

- 3/8 x 38-1/2 inch

4шт.

7

1344770C1

SUPPORT

ASSEMBLY

1шт.

8

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange top lock, 1/2 inch NC

16шт.

9

T58133

HEADLESS PIN,33.34mm OD x 170mm L

PIN - 1-5/16 x 6-5/8 inch

2шт.

10

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2 inch

2шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

12шт.

12

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

13

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, lock, 2 way, 3/4 inch NC

12шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

16шт.

15

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

17

195-533

WASHER,1/2", SAE

- flat, 1/2 inch

4шт.

18

131-217

LOCK NUT

NUT - hex, lock, nylon, 3/8 inch NC

3шт.

19

851126C1

CLEVIS PIN

PIN - clevis

4шт.

20

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis

2шт.

21

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

6шт.

22

REF

INSTRUCTION

CYLINDER - hydraulic (See Figure 8-13)

2шт.

23

218-1602

UNION

FITTING - tee

2шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

6шт.
