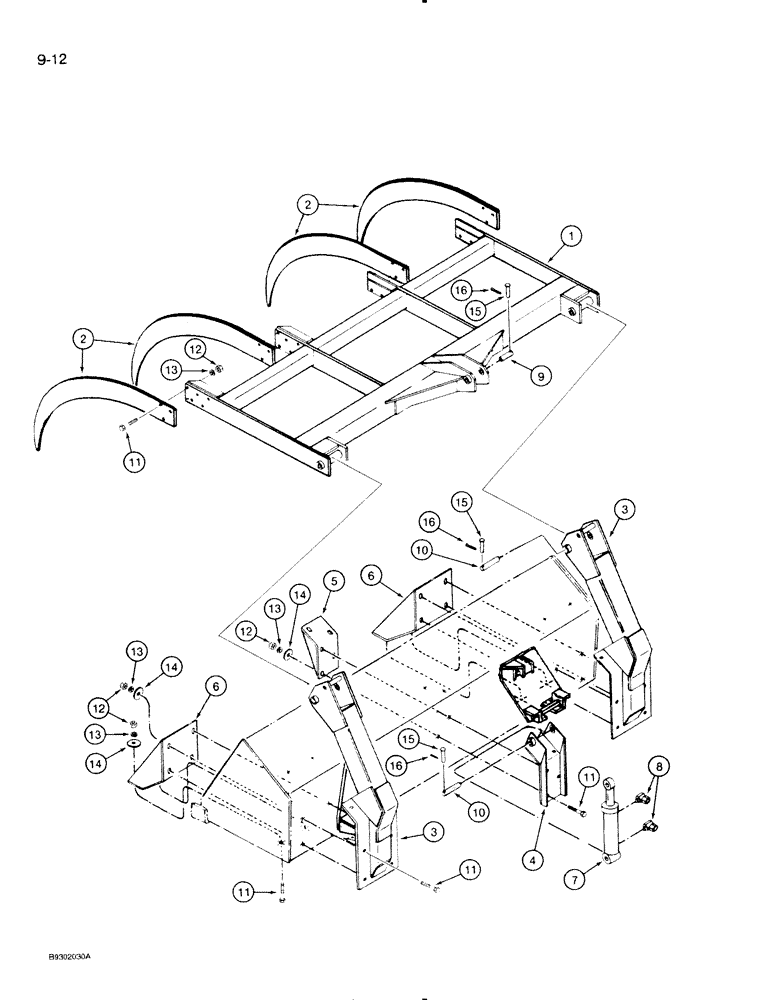

Запчасти Case IH 710 (9-12) - FOUR TINE GRAPPLE (09) - CHASSIS/ATTACHMENTS

1

1978869C1

ARM ASSY.

SWING ARM ASSEMBLY

1шт.

2

T57742

TOOTH

- grapple

4шт.

3

T58188

PEDESTAL

ASSEMBLY

2шт.

4

T58189

BRACKET

- cylinder mount

1шт.

5

T58190

SUPPORT

BRACKET - center support

1шт.

6

1978870C1

SUPPORT ASSY.

BRACKET - support assembly

2шт.

7

REF

INSTRUCTION

CYLINDER - hydraulic, 2-1/2 inch (See Figure 8-13)

1шт.

8

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- 90 degree, adjustable

2шт.

9

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2 inch

1шт.

10

T50016

PIN

- 1-1/8 x 6-1/2 inch

3шт.

11

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 1/2 x 1-3/4 inch NC

33шт.

12

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex top lock, 1/2 inch NC

33шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

33шт.

14

T58192

COVER

WASHER - flat hardened, 1/2 inch

17шт.

15

T50008

PIN

- clevis

4шт.

16

132-46

COTTER PIN,1/8" x 3/4"

PIN - cotter, 1/8 x 1 inch

4шт.

126098

FITTING

- grease, straight

4шт.
