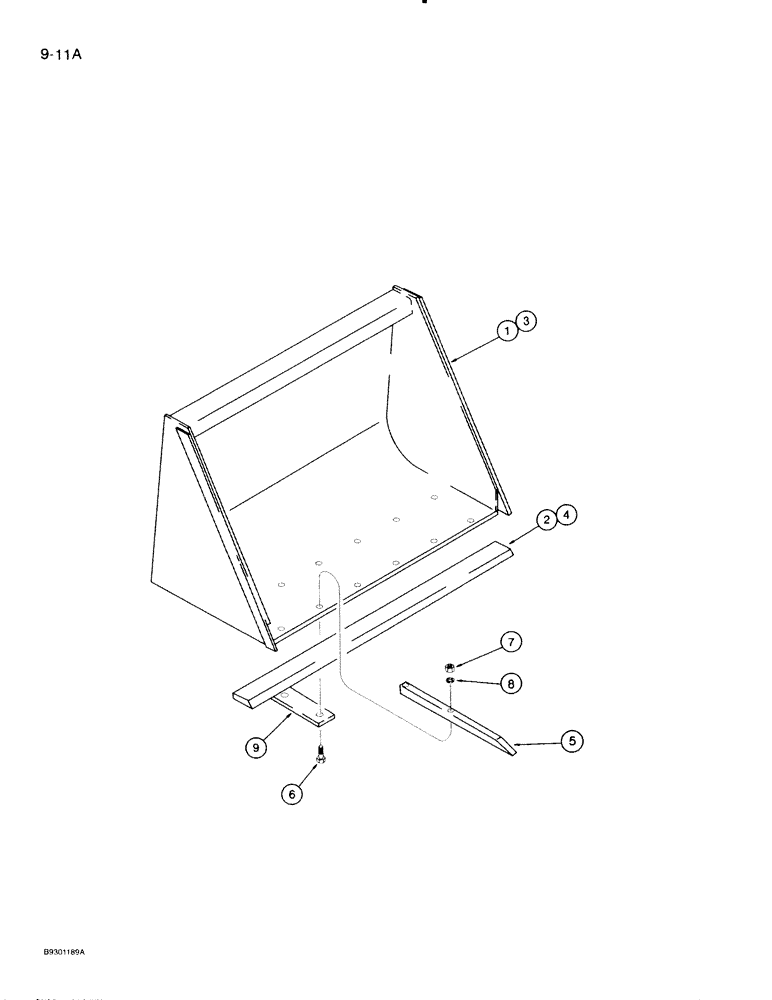

Запчасти Case IH 710 (9-11A) - MATERIAL BUCKET AND TINES, HIGH BACK BUCKET, P.I.N. CJA0001736 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

105016A1

BUCKET ASSEMBLY - 96 inch drilled for tines, replaceable edge (Machinery Item)

1шт.

2

1540351C1

EDGE, CUTTING

EDGE - replaceable, 3/4 x 97-1/2 inch for 96 inch bucket (Machinery Item)

1шт.

3

105017A1

BUCKET ASSEMBLY - 108 inch drilled for tines, replaceable edge (Machinery Item)

1шт.

4

105018A1

BLADE

EDGE - replaceable, 3/4 x 109 - 1/2 inch for 108 inch bucket (Machinery Item)

1шт.

5

T51043

TINE

- 96 inch bucket

10шт.

6

419-3648

PLOW BOLT,#3, 3/8" - 16 x 3", Gr 5

BOLT - hex, 3/8 NC x 3 inch (Replaces 413-648)

20шт.

7

425-106

NUT,3/8"-16, Cl 5

20шт.

8

492-11038

LOCK WASHER,3/8"

20шт.

9

1540357C1

BAR

- doubler

10шт.
