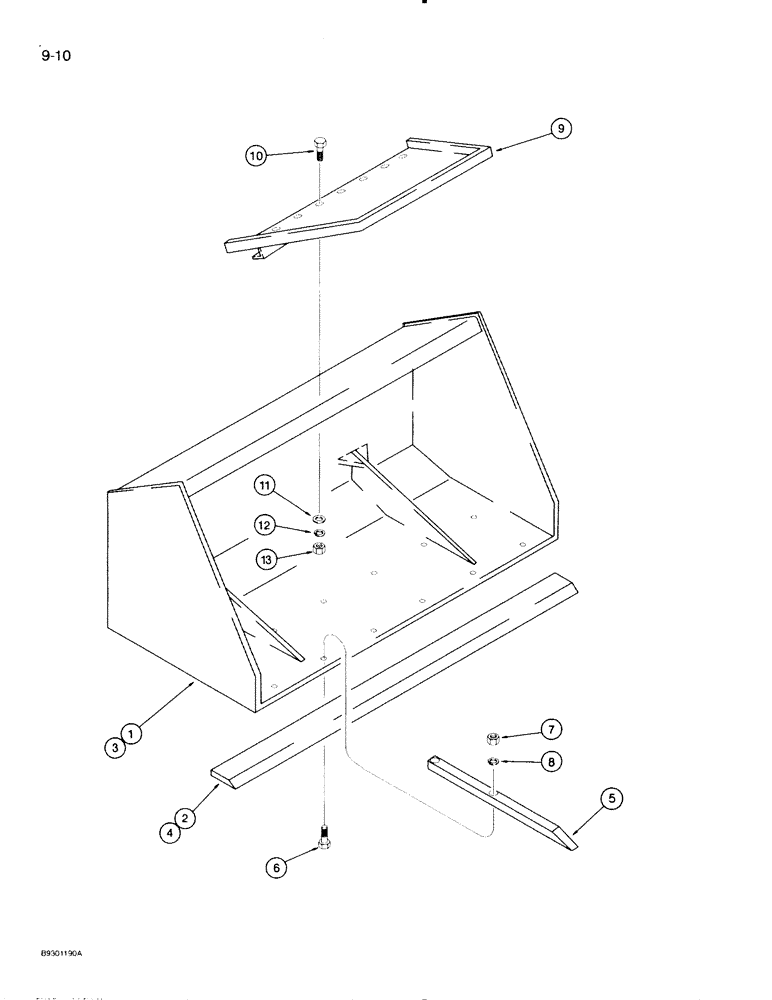

Запчасти Case IH 710 (9-10) - MATERIAL BUCKET AND TINES, USES BOLT-ON SPILL GUARD, PRIOR TO P.I.N. CJA0001736 (09) - CHASSIS/ATTACHMENTS

1

1978914C1

BUCKET ASSEMBLY - 83 inch drilled and riveted for lines, replaceable edge (Machinery Item)

1шт.

2

T50015

EDGE

- replaceable 91 inch for 83 inch bucket (Machinery Item)

1шт.

3

1978915C1

BUCKET ASSEMBLY - 96 inch drilled and riveted for tines, replaceable edge (Machinery Item)

1шт.

4

T53865

EDGE

- replaceable 104 inch for 96 inch bucket (Machinery Item)

1шт.

5

T89091

TINE ASSEMBLY - 24 inch for 83 inch bucket (Machinery Item)

10шт.

5

T89091

TINE ASSEMBLY - 24 inch for 98 inch bucket (Machinery item)

10шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

20шт.

7

425-106

NUT,3/8"-16, Cl 5

20шт.

8

492-11038

LOCK WASHER,3/8"

20шт.

9

1978853C1

GUARD

PLATE - spillguard

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

7шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 3/8 inch

7шт.

12

492-11038

LOCK WASHER,3/8"

7шт.

13

425-106

NUT,3/8"-16, Cl 5

7шт.
