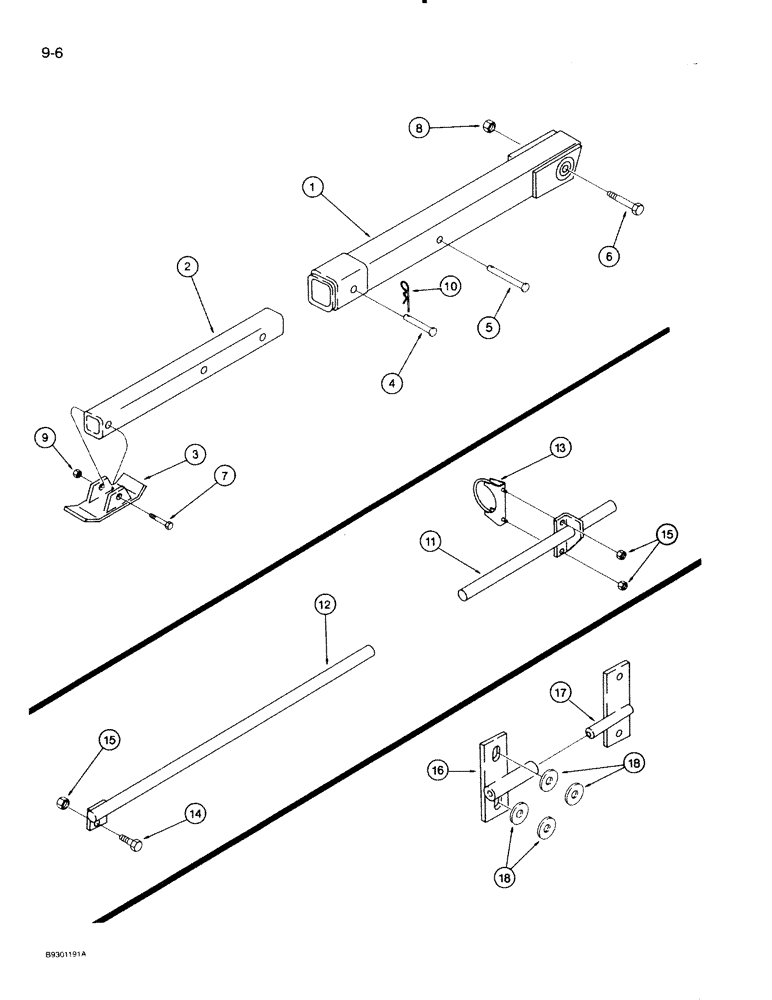

Запчасти Case IH 710 (9-06) - PARKING STAND (09) - CHASSIS/ATTACHMENTS

1

1978837C1

STAND

- parking assembly

2шт.

2

1978918C1

STAND

- left parking

1шт.

2

1978919C1

STAND

- right parking

1шт.

3

1978835C1

FOOT

- parking stand

2шт.

4

26965R1

HEADED PIN,5/8" x 4"

PIN, LARGE - clevis 5/8 inch

2шт.

5

22902R1

HEADED PIN,5/8" x 5 3/4"

PIN - clevis, 5/8 x 5-1/2 inch

2шт.

6

25698R1

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex, 3/4 NC x 6 inch, Grade 8

2шт.

7

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

2шт.

8

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

2шт.

9

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex top lock, 1/2 inch NC

2шт.

10

H120683

PIN,15.88mm OD x 94.06mm L

- cotter, hair

4шт.

11

1978839C1

TUBE

ASSY. - bucket level indicator

1шт.

12

1978840C1

ROD ASSY.

- bucket level indicator

1шт.

13

1978838C1

CLAMP

- bucket level indicator

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch- bucket level indicator

1шт.

15

425-106

NUT,3/8"-16, Cl 5

Bucket level indicator 3/8"-16, G5

3шт.

16

1978833C1

LATCH ASSY.

LATCH - female hood

1шт.

17

1978834C1

LATCH ASSY.

LATCH - male hood

1шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Hood latches

4шт.
