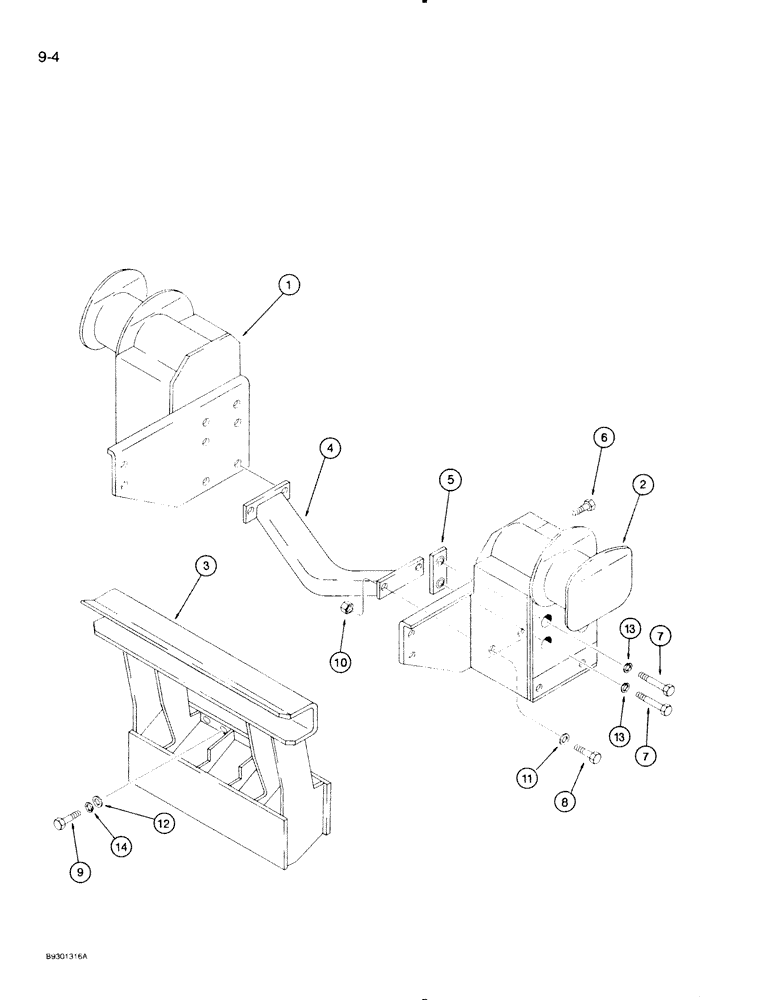

Запчасти Case IH 710 (9-04) - MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

1978793C1

BRACKET

- right center

1шт.

2

1978792C1

BRACKET

- left center

1шт.

3

1978796C2

BRACKET

- front

1шт.

4

1978791C1

CROSSBAR

BRACE - cross

1шт.

5

1978799C1

NUT ASSY.

NUT ASSEMBLY - 5/8 inch NC

6шт.

6

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

12шт.

8

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

9

814-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 8.8

- hex, 20 mm - 2.5 x 65 mm, Grade 8.8

6шт.

10

131-1139

NUT,5/8"-11, GA

- hex, lock, 5/8 inch NC

4шт.

11

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

12

195-109

WASHER,3/4"

- flat, 13/16 x 2 x 1/8 inch

6шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

14

192-29

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

6шт.
