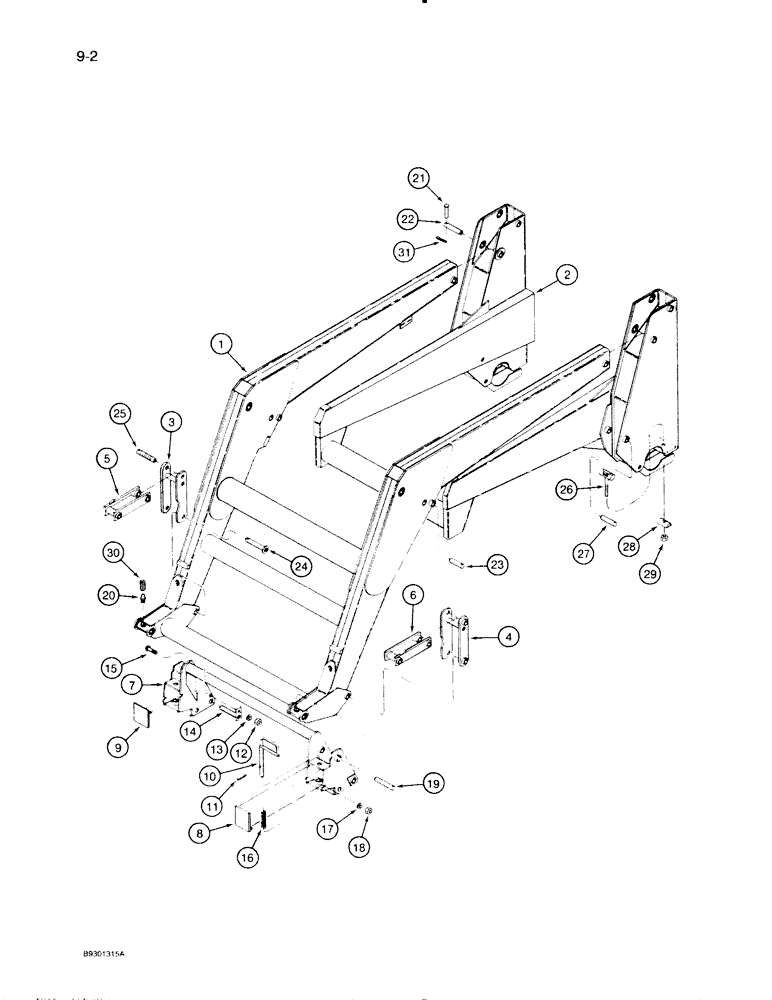

Запчасти Case IH 710 (9-02) - MAIN FRAME AND SUB FRAME (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1978801C1
FRAME
- main, Serial Range: -CJA0001736
1шт.
1
105019A1
FRAME
- main, Start Serial: CJA0001736
1шт.
2
1978800C1
FRAME
- sub
1шт.
3
1978788C1
LINKAGE
- right
1шт.
4
1978787C1
LINKAGE
- left
1шт.
5
1978790C1
LINKAGE
- right bucket
1шт.
6
1978789C1
LINKAGE
- left bucket
1шт.
7
1978828C1
ASSEMBLY
FRAME - quick attach (Replaces 1978818C1)
1шт.
8
1978831C1
PLATE
- left cover
1шт.
9
1978832C1
PLATE
- right cover
1шт.
10
1978829C1
PIN
- quick attach
2шт.
11
138-180
LOCK PIN,3/8" x 2 1/2", Slotted
PIN, 3/8" x 2 1/2", Slotted
2шт.
12
131-1182
LOCK NUT,1/2"-13, GA
NUT - hex, self-locking, 1/2 inch NC
2шт.
13
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
14
1978809C1
PIN
- 1-5/16 x 7-3/16 inch
2шт.
15
111-518
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G2, Full Thd
BOLT - carriage, 1/2 NC x 1-1/2 inch
2шт.
16
1978830C1
SPRING
- quick attach
2шт.
17
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
4шт.
19
1978808C1
PIN
- 1-5/16 x 7-7/8 inch
2шт.
20
126098
FITTING
- grease, straight
10шт.
21
141-59
CLEVIS PIN,3/8" x 2 1/4"
PIN - clevis, 3/8 x 2-1/4 inch, hardened
12шт.
22
1978811C1
PIN
- 1-5/16 x 7-1/4 inch
2шт.
23
1978812C1
PIN
- 1-5/16 x 5-3/4 inch
2шт.
24
1978807C1
PIN ASSY.
PIN - 1-5/16 x 7-3/8 inch
2шт.
25
1978813C1
PIN,33.34mm OD x 190.5mm L
- left, 1-5/16 x 7-1/2 inch
1шт.
25
1978814C1
PIN
- right, 1-5/16 x 7-1/2 inch
1шт.
26
1978797C1
HARDWARE,Hex, 7/8" - 9 x 7", Gr 8
BOLT ASSEMBLY - 7/8 NC x 7 inch
2шт.
27
1978810C1
PIN
- 1-5/16 x 7-1/8 inch
2шт.
28
1978798C1
WASHER
- solid special
2шт.
29
429-1014
NUT,7/8"-9, G8
- hex, 7/8 inch NC, grade 8
2шт.
30
1978925C1
PLUG
- 1/2 inch pipe with recess
2шт.
31
119117
COTTER PIN,3/32" x 1/2"
PIN - COTTER, 3/32 x 1/2 inch
8шт.
Выбрано товаров: 33
