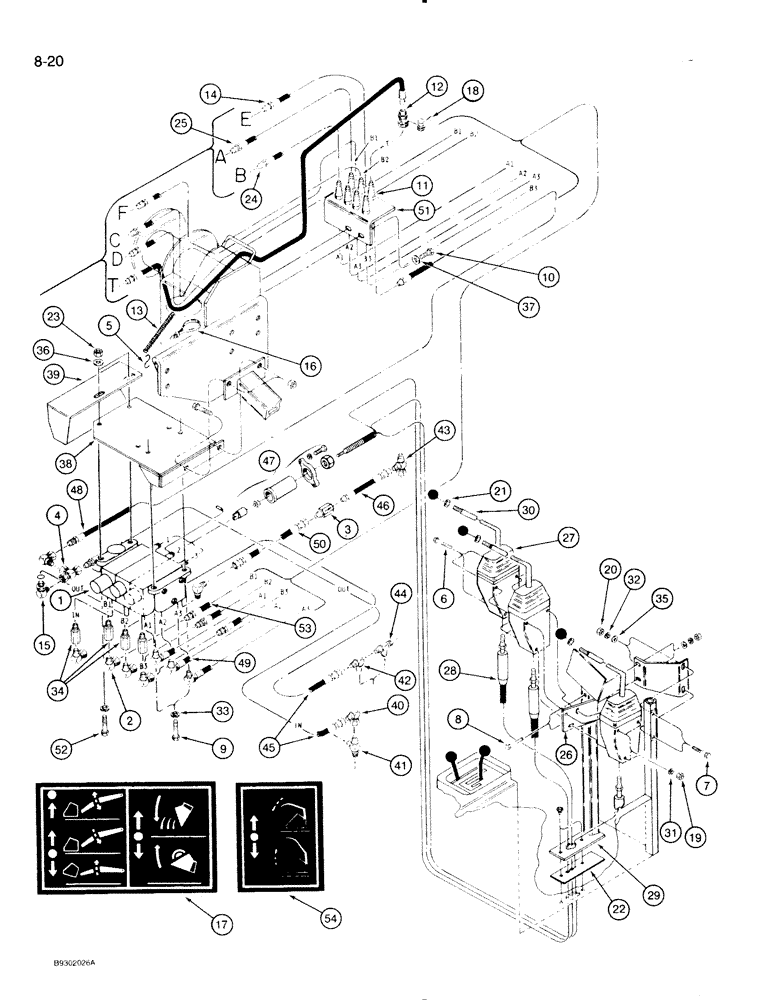

Запчасти Case IH 710 (8-20) - CONTROL VALVE CABLE KIT, THREE SPOOL (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - control, 3 spool (See Figure 8-25)

1шт.

2

293351R91

UNION

FITTING - 90 degree 1/2 female pipe x 1/2 inch male pipe

5шт.

3

T53145

CHECK VALVE

VALVE - check, 1/2 inch

1шт.

4

218-1602

UNION

FITTING - tee, 1/2 inch female pipe

1шт.

5

T54066

CHAIN (AG)

S-HOOKS

1шт.

6

413-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

3шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch, NC

2шт.

8

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 x 2-1/2 inch, NC

2шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 x 1-1/4 inch, NC

2шт.

10

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 x 3/4 inch, NC

2шт.

11

H49726

PUSH-PULL COUPLING

COUPLER - quick, male

7шт.

12

H49718

COUPLING

COUPLER - quick, female

7шт.

13

T58226

SPRING

- hose hanger

1шт.

14

T58001

HOSE ASSY.

HOSE - hydraulic, 1/2 x 84 inch

1шт.

15

T57832

FITTING

- 90 degree, 1/2 male pipe x 7/8 inch male O-ring

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

TIE - nylon, 5/16 x 13 inch

8шт.

17

321-6404

DECAL

- valve mounting

1шт.

18

T57615

PLUG

- coupler

7шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

- hex, 1/2 inch, NC

3шт.

20

9635082

NUT,5/16" - 18, Gr 5

4шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch, NF

3шт.

22

1978858C1

MANIFOLD

SPACER - neoprene

1шт.

23

131-217

LOCK NUT

NUT - hex lock, nylon 3/8 inch, NC

2шт.

24

1978846C1

HOSE

- hydraulic, 1/2 x 83-11/16 inch

2шт.

25

1978847C1

HOSE

- hydraulic, 1/2 x 84 inch

4шт.

26

1978859C1

SUPPORT ASSY.

MOUNT - handle, assembly

1шт.

27

1978860C1

HANDLED SHAFT

HANDLE ASSEMBLY

3шт.

RUBBER BOOT FOR ITEM#27 IS 105046A1.

1шт.

28

1978861C1

CABLE

- control, 78 inch

3шт.

29

1978862C1

MOUNTING PARTS

MOUNT - handle assembly

1шт.

30

1978868C1

EXTENSION

HANDLE - round, extension, black

3шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

FITTING - straight, 1/2 female pipe x 7/8 inch male O-ring

4шт.

35

195-103

WASHER,5/16"

- flat, 5/16 inch

4шт.

36

195-104

WASHER,3/8"

- flat, 3/8 inch

2шт.

37

195-533

WASHER,1/2", SAE

- flat, 1/2 inch

2шт.

38

1980837C1

MOUNTING PARTS

MOUNT - valve assembly

1шт.

39

1980838C1

COVER

- valve assembly

1шт.

40

201-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1шт.

41

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

FITTING - tee, 1-3/16 male O-ring seal x 1-1/16 male O-ring boss x 1-3/16 inch male O-ring seal

1шт.

42

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

FITTING - 90 degree, 1-3/16 male O-ring seal x 1-1/16 inch male O-ring boss

1шт.

43

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

FITTING - tee, 11/16 male o-ring seal x 11/16 inch female O-ring seal x 11/16 inch male O-ring seal

1шт.

44

201-424

TEE,1 3/16"-12 x 1 1/16"-12 Run, ORFS

FITTING - tee, 1-3/16 male O-ring seal x 1-1/16 inch male O-ring boss

1шт.

45

1980844C1

HOSE

- hydraulic, 5/8 x 90 inch

2шт.

46

1980843C1

HOSE

- hydraulic, 3/8 x 12 inch

1шт.

47

1980842C1

PACKAGE

ADAPTER - cable control

3шт.

48

407435R1

HOSE

- hydraulic, 1/2 x 23 inch

2шт.

49

1980845C1

HOSE

- hydraulic, 1/2 x 18 inch

3шт.

50

1344548C1

HOSE

- hydraulic, 1/2 x 30 inch

1шт.

51

1980839C1

BAR

MOUNT - bar coupler

1шт.

52

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

53

1980836C1

HOSE

- hydraulic, 1/2 x 18 inch

2шт.

54

321-6405

DECAL

- valve mounting

1шт.
