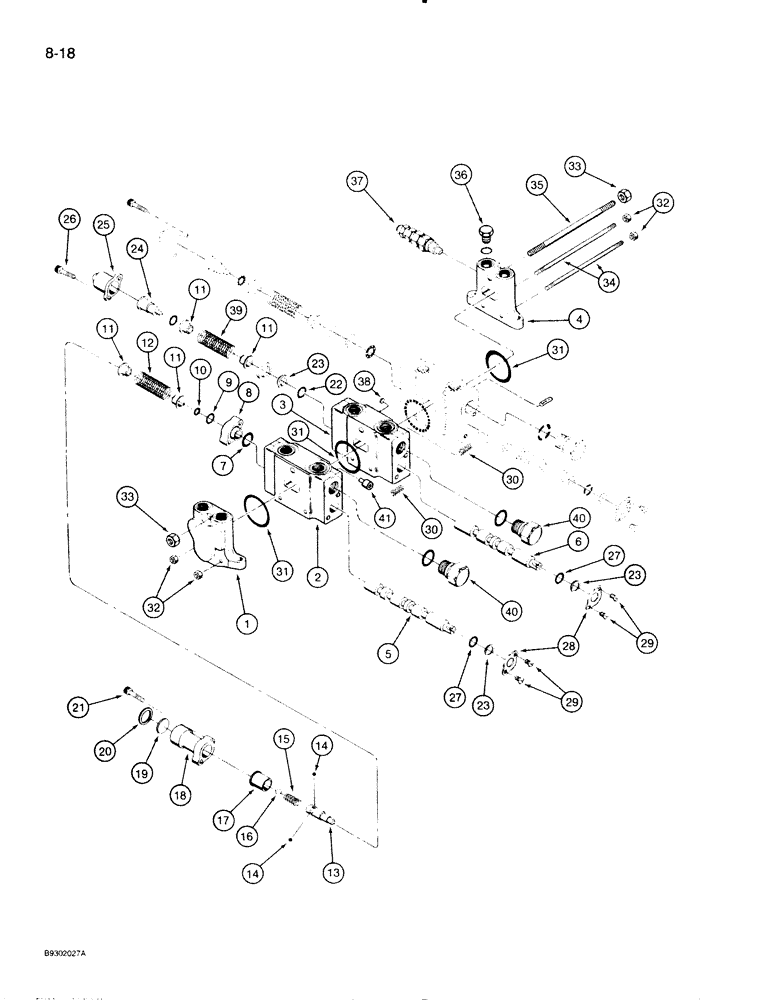

Запчасти Case IH 710 (8-18) - CONTROL VALVE, TWO SPOOL (08) - HYDRAULICS

1980840C1

VALVE

- control, 2 spool, Includes: Ref. 1 - 41

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - inlet

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - spool

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - spool

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - outlet

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

7

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

8

1344720C1

SPACER

CAP - spool spacer

1шт.

9

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

2шт.

10

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

- detent spool

4шт.

11

1344732C1

SEAT

- spring

4шт.

12

S111867

SPRING

1шт.

13

1344730C1

END

SPOOL - end detent pin

1шт.

14

23204R1

BALL,7/32" Dia, Stainless

4шт.

15

1344718C1

SPRING

- detent

1шт.

16

23206R1

BALL,5/16" Dia, Stainless

1шт.

17

1344721C1

SLEEVE

- detent

1шт.

18

1344724C1

CAP

- spool detent

1шт.

19

1344719C1

PLATE

SPACER

1шт.

20

1344715C1

RING

- retaining

1шт.

21

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

SCREW - cap socket head

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

S111870

OIL SCRAPER RING

WIPER

4шт.

24

1344729C1

END

STOP - spool end

1шт.

25

S111869

CAP

- spool

1шт.

26

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

SCREW, Hex Soc Hd, 1/4"-20 x 3/4"

2шт.

27

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

- detent spool

4шт.

28

S111865

PLATE

- seal

2шт.

29

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

BOLT - pan head, 1/4 x 3/8 inch

4шт.

30

1344737C1

SPRING

- compression

2шт.

31

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

3шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

33

329-116

NUT,3/8"-24, G8

2шт.

34

1344725C1

TIE-ROD,5/16" - 18 x 6"

BOLT - tie rod

2шт.

35

1344727C1

TIE-ROD,3/8" - 24 x 6 1/8"

BOLT - tie rod, 3/8 x 6-1/8 inch

1шт.

36

86512512

PLUG,7/8" - 14 ORB

1шт.

37

1344733C1

VALVE

ASSEMBLY - relief, 2500 PSI

1шт.

38

1344736C1

PLATE

SHUTTLE

1шт.

39

1344735C1

SPRING

- compression

1шт.

40

1344731C1

PLUG

- shut off

3шт.

41

1344738C1

PISTON

- compensator

2шт.
