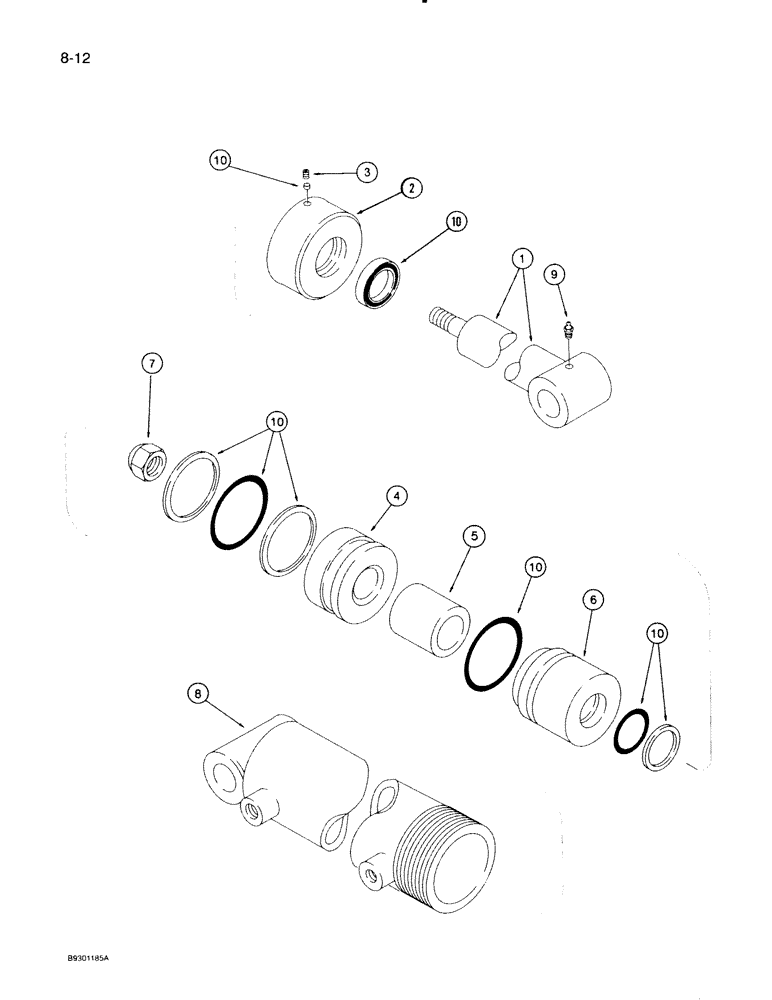

Запчасти Case IH 710 (8-12) - GRAPPLE CYLINDER (08) - HYDRAULICS

T57744

CYLINDER

- hydraulic, 2-1/2 inch, Includes: Ref. 1 - 8

1шт.

1

T57745

ROD

- piston

1шт.

2

T50089

CAP

- head, cylinder

1шт.

3

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - hex socket, 1/4 NC x 1/4 inch set

1шт.

4

T50090

PISTON

- cylinder

1шт.

5

T58030

SPACER

- cylinder

1шт.

6

T50088

HEAD

- cylinder

1шт.

7

129-128

NUT,3/4"-16, G5

- hex, 3/4 inch NF

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE - piston

1шт.

9

126098

FITTING

- grease

2шт.

10

T51786

SEAL KIT

KIT - seal (Includes all Refs. marked 10)

1шт.
