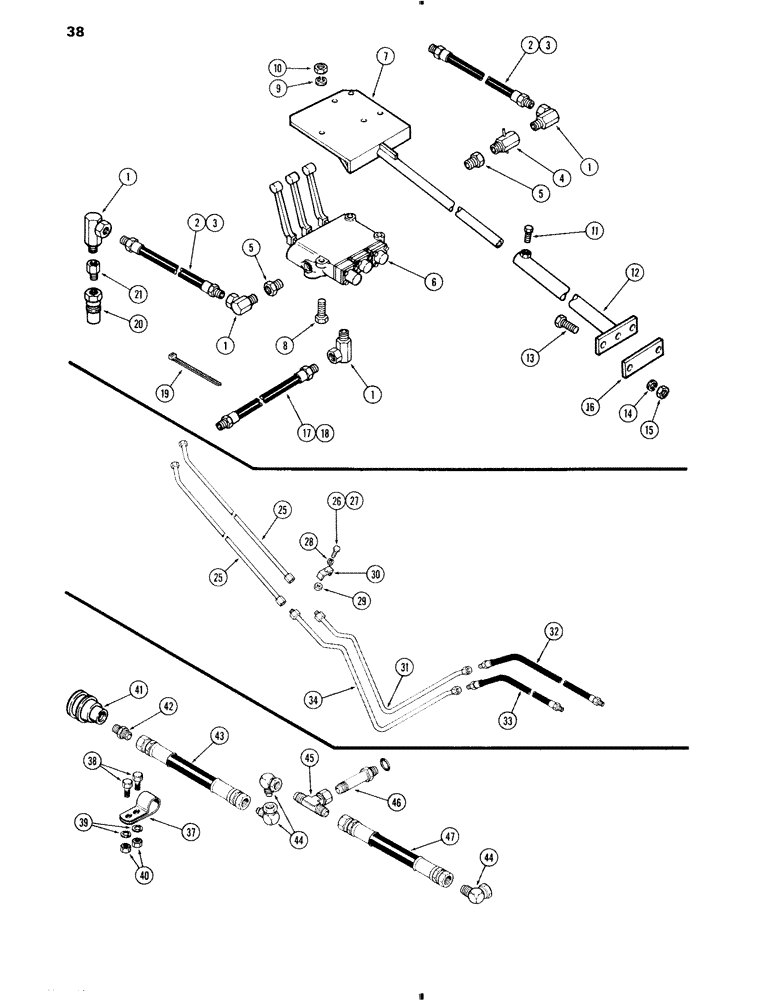

Запчасти Case IH 70 (38) - CONTROL VALVE AND HOSES / THIRD CYLINDER KIT / HYDRAULIC RETURN KIT (35) - HYDRAULIC SYSTEMS

1

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - hose 1/2" x 90 deg.

10шт.

2

T50079

HOSE - 3/8 x 60" (Valve to tractor 70U)

2шт.

3

T50080

HOSE - 3/8 x 72" (Valve to tractor 70S and 70L)

2шт.

4

T53145

CHECK VALVE

VALVE - check

1шт.

5

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer 1/2 to 3/4"

2шт.

6

T53143

VALVE

- control (See Figure 45)

1шт.

7

T53779

MOUNT - valve upper

1шт.

8

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

12

T50917

MOUNT - valve lower

1шт.

13

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

129-107

NUT,5/8"-11, G5

2шт.

16

T50918

PLATE - clamp

1шт.

17

T53780

HOSE - 3/8 x 48" (Valve to loader 70U)

6шт.

18

T50079

HOSE - 3/8 x 60" (Valve to loader 70S and 70L)

6шт.

19

T54520

STRAP

- nylon tie 3/16 x 11"

2шт.

20

A28541

COUPLING, BREAK AWAY

PLUG - breakaway (See Figure 69)

2шт.

21

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- breakaway coupling

2шт.

25

T53777

TUBE,0.625" OD x 38.125" L

- hydraulic rear (38-1/8") third cylinder kit

2шт.

26

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3rd cylinder kit Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

27

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3rd cylinder kit Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 3rd cylinder kit 5/16"

3шт.

29

9635082

NUT,5/16" - 18, Gr 5

Third cylinder kit 5/16"-18, G5

3шт.

30

T50064

CLAMP

- tube third cylinder kit

3шт.

31

T53775

TUBE,0.625" OD

- hydraulic front inside (37-1/2") third cylinder kit

1шт.

32

T50080

HOSE - 3/8 x 72" (To third cylinder) third cylinder kit

1шт.

33

T50079

HOSE - 3/8 x 60" (To third cylinder) third cylinder kit

1шт.

34

T53776

TUBE - hydraulic front outside (39-1/2") third cylinder kit 0.625" OD

1шт.

37

A57662

CLAMP

- coupling hydraulic return kit

1шт.

38

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Hydraulic return kit Hex, 1/4"-20 x 1 1/4", G5

2шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Hydraulic return kit 1/4"

2шт.

40

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Hydraulic return kit

2шт.

41

A28542

COUPLING, QUICK, FEM

COUPLING - female (See Figure 69) hydraulic return kit

1шт.

42

A27359

ADAPTER

- hose 1/2 x 7/8" hydraulic return kit

1шт.

43

T53522

HOSE - hydraulic 25" hydraulic return kit

1шт.

44

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Hydraulic return kit 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

3шт.

45

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- swivel branch hydraulic return kit

1шт.

46

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - long with O-ring hydraulic return kit

1шт.

47

D54105

HOSE

- hydraulic 13-1/2" hydraulic return kit

1шт.
