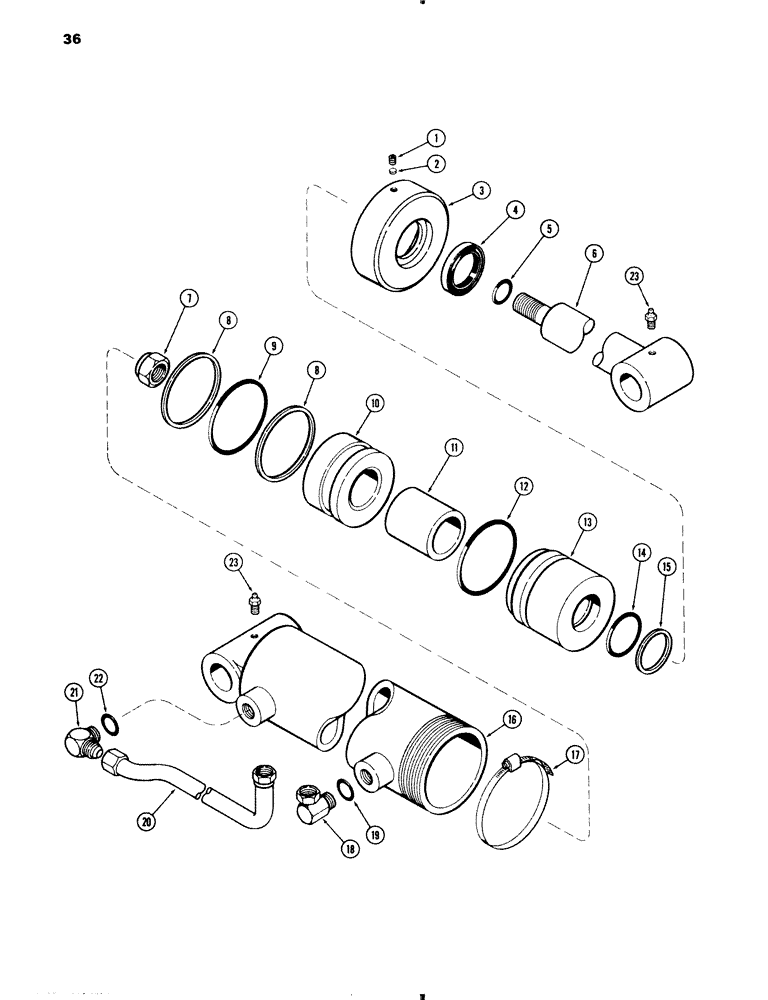

Запчасти Case IH 70 (36) - T53146 CYLINDER (35) - HYDRAULIC SYSTEMS

T53146

CYLINDER

hydraulic, complete, 2", Includes: Ref. 1 - 16

1шт.

1

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

socket head, 1/4 x 1/4"

1шт.

2

T55068

PLUG

nylon

1шт.

Part of P/N T63155 Seal Kit

1шт.

3

T53356

CAP

HEAD CAP

1шт.

4

B17291

WIPER SEAL

SEAL, wiper lip type

1шт.

Part of P/N T63155 Seal Kit

1шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8"

1шт.

Part of P/N T63155 Seal Kit

1шт.

6

T53388

ROD

piston

1шт.

7

131-909

LOCK NUT,3/4"-16

NUT piston rod

1шт.

8

B17296

BACK-UP RING

SEAL back-up

2шт.

Part of P/N T63155 Seal Kit

1шт.

9

T53353

O-RING,1.6" ID x 2.02" OD x 0.21"

1-5/8 ID x 3/16"

1шт.

Part of P/N T63155 Seal Kit

1шт.

10

B17272

PISTON

1шт.

11

T53386

SPACER

1шт.

12

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1/8"

1шт.

Part of P/N T63155 Seal Kit

1шт.

13

T53357

HEAD

cylinder

1шт.

14

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1-1/4 x 1-1/2 x 1/8"

1шт.

Part of P/N T63155 Seal Kit

1шт.

15

B17298

BACK-UP RING

SEAL back-up

1шт.

Part of P/N T63155 Seal Kit

1шт.

16

T53387

TUBE

cylinder

1шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

cylinder #36, 1.81/2.75 Type F Worm

1шт.

18

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

ASSY., 90 deg., Includes: Ref. 19

1шт.

20

T53147

TUBE,0.625" OD x 14, 2.25" L

hydraulic

1шт.

21

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSY., 90 deg., Includes: Ref. 22

1шт.

23

219-15

LUBE NIPPLE,5/16" NPTF

FITTING grease, straight drive, 5/16"

2шт.

T63155

KIT

seal, Includes: Ref. 2, 4, 5, 8, 9, 12, 14 and 15

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5/8 x 13/16 x 3/32"

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5/8 x 13/16 x 3/32"

1шт.
