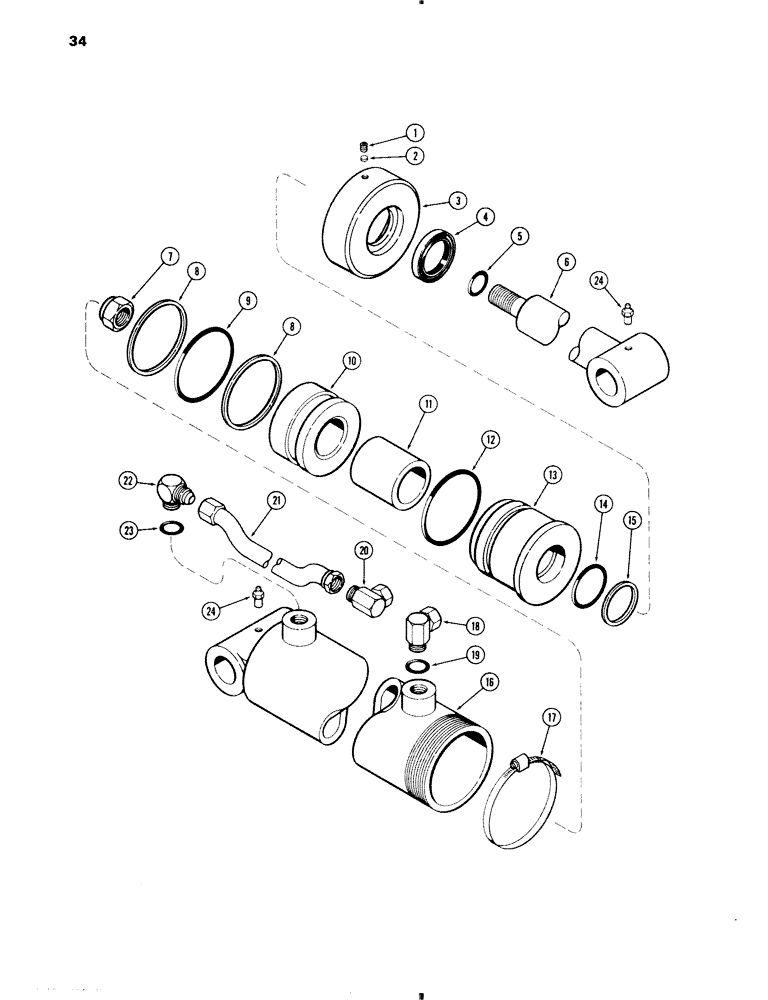

Запчасти Case IH 70 (34) - T53098 CYLINDER (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
T53098
CYLINDER
- hydraulic 2" complete, Includes: Ref. 1 - 16
1шт.
1
83-44
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
- 1/4 x 1/4" socket head
1шт.
2
T55068
PLUG
- nylon
1шт.
Part of P/N T63155 Seal Kit
1шт.
3
T53356
CAP
HEAD CAP
1шт.
4
B17291
WIPER SEAL
SEAL - wiper lip type
1шт.
Part of P/N T63155 Seal Kit
1шт.
5
F62075
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
- 3/4 x 1 x 1/8"
1шт.
Part of P/N T63155 Seal Kit
1шт.
6
T53896
ROD ASSY.
ROD - piston
1шт.
8
B17296
BACK-UP RING
SEAL - back-up
2шт.
Part of P/N T63155 Seal Kit
1шт.
9
T53353
O-RING,1.6" ID x 2.02" OD x 0.21"
- 1-5/8 ID x 3/16"
1шт.
Part of P/N T63155 Seal Kit
1шт.
10
B17272
PISTON
1шт.
11
T53358
SPACER
1шт.
12
A7156
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
- 1-3/4 x 2 x 1/8"
1шт.
Part of P/N T63155 Seal Kit
1шт.
13
T53357
HEAD
- cylinder
1шт.
14
A27577
O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro
- 1-1/4 x 1-1/2 x 1/8"
1шт.
Part of P/N T63155 Seal Kit
1шт.
15
B17298
BACK-UP RING
SEAL - back-up
1шт.
Part of P/N T63155 Seal Kit
1шт.
16
T53895
TUBE ASSY.,2.373" OD x 28.75" L
TUBE - cylinder
1шт.
17
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
cylinder #36, 1.81/2.75 Type F Worm
1шт.
18
218-5203
90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem
ASSY - 90 deg., Inlcudes: Ref. 19
1шт.
20
218-927
ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw
- 90 deg.
1шт.
21
T50058
TUBE,19.062" L
- hydraulic
1шт.
22
218-5117
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB
ASSY - 90 deg., Includes: Ref. 23
1шт.
24
219-15
LUBE NIPPLE,5/16" NPTF
FITTING - grease 5/16" straight drive
2шт.
T63155
KIT
seal, Includes: Ref. 2, 4, 5, 8, 9, 12, 14 and 15
1шт.
19
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 5/8 x 13/16 x 3/32"
1шт.
23
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 5/8 x 13/16 x 3/32"
1шт.
Выбрано товаров: 34
