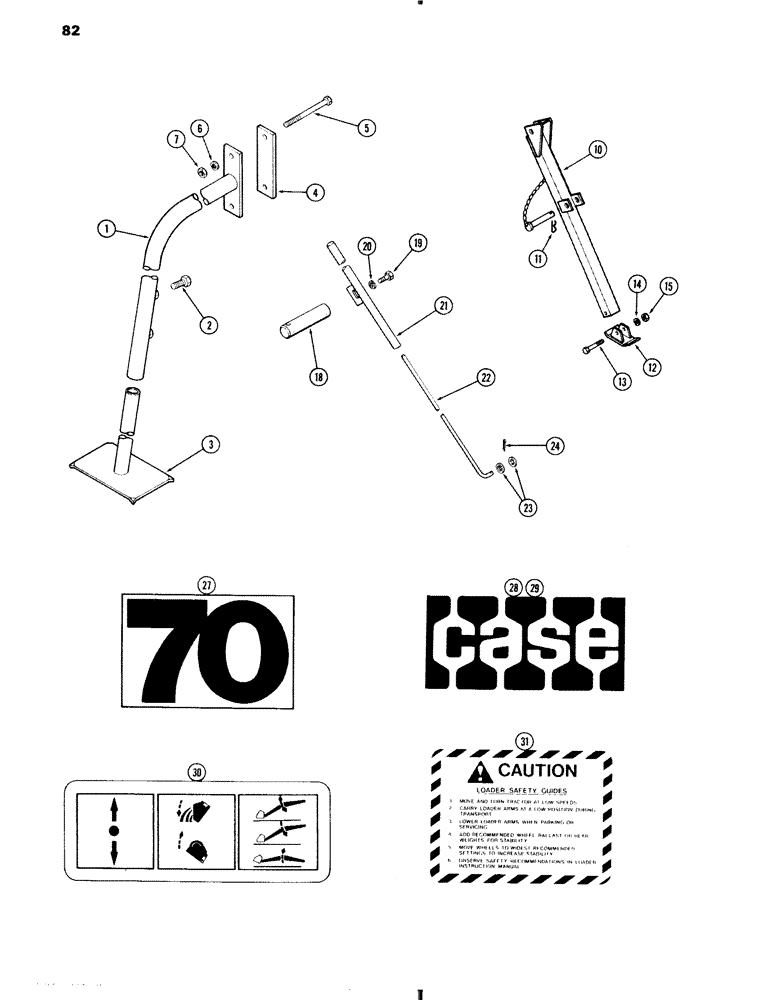

Запчасти Case IH 70 (82) - PARKING STAND, 70L, 70S AND 70U, PARKING STAND, 70Q, BUCKET (82) - FRONT LOADER & BUCKET

1

T50023

SUPPORT - upper

2шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

T50024

SUPPORT - lower

2шт.

4

T50022

STRAP - back

2шт.

5

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

10

T54569

STAND - parking stand 70Q

2шт.

11

T54573

PIN

COTTER - hairpin, parking stand 70Q

2шт.

12

T54570

FOOT

- stand, parking stand 70Q

2шт.

13

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Parking stand 70Q Hex, 3/8"-16 x 3 1/2", G5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Parking stand 70Q 3/8"

2шт.

15

87016560

JAM NUT,Jam, 3/8"-16, G5

Parking stand 70Q Jam, 3/8"-16, G5

4шт.

18

T53523

PIN - mounting, bucket level indicator

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bucket level indicator Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

20

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket level indicator 3/8"

1шт.

21

T53525

TUBE - support, bucket level indicator 10" L

1шт.

22

T53524

ROD

- linkage, bucket level indicator

1шт.

23

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge, bucket level indicator

2шт.

24

132-318

COTTER PIN,5/32" x 1"

bucket level indicator 5/32" x 1"

1шт.

27

321-3955

DECAL - Model 7O

2шт.

28

321-2676

DECAL

- Case

2шт.

29

321-2675

DECAL

- Case

1шт.

30

321-2690

DECAL

- Valve Mount

1шт.

31

321-2726

DECAL

- Loader Safety

1шт.
