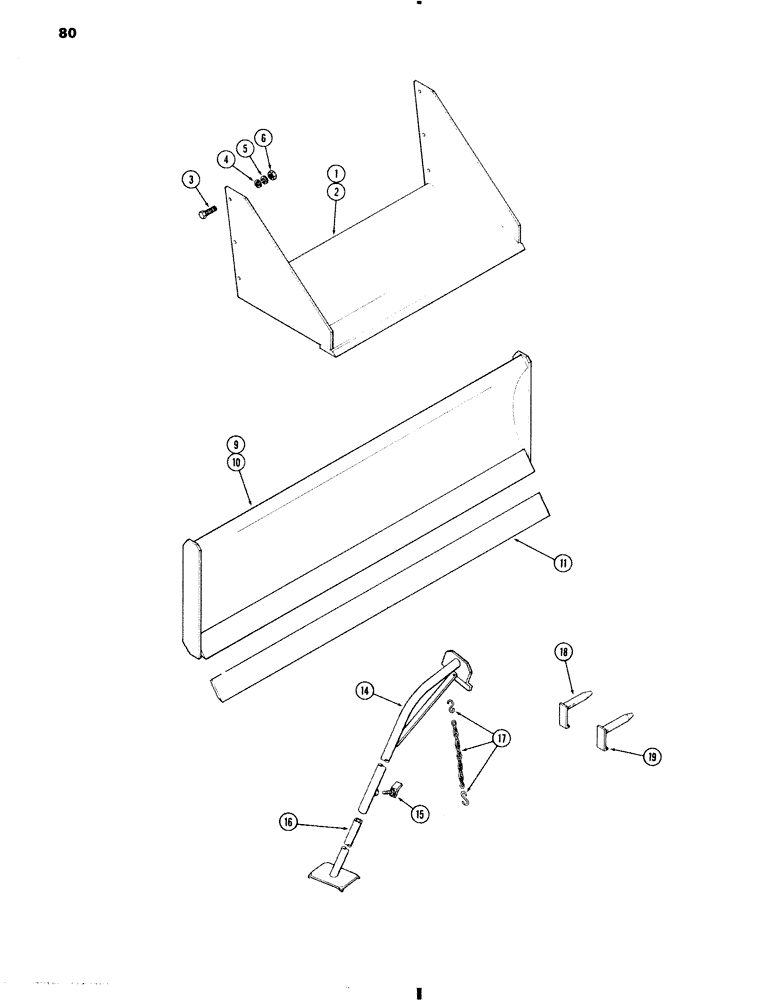

Запчасти Case IH 70 (80) - MANURE FORK DIRT PLATE, 48 INCH, 60 INCH, DIRT BLADES, QUICK ATTACHING PARKING STAND, 70L & 70S (82) - FRONT LOADER & BUCKET

1

T52183

PLATE - dirt

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

4

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge

6шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

6шт.

2

T52178

PLATE - dirt 60 inch

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

60 inch Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge 60 inch

6шт.

5

92-6

LOCK WASHER,3/8"

60 inch 3/8"

6шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" NC hex 60 inch

6шт.

9

T88301

BLADE - dirt 7 foot with replaceable edge (Machinery Item) dirt blades

1шт.

10

T89806

BLADE - dirt 8 foot with replaceable edge (Machinery Item) dirt blades, Includes: Ref. 11

1шт.

11

T50012

EDGE

- replaceable 84" dirt blades

1шт.

14

T54049

STAND - upper, quick attaching parking stand 70L and 70S, Start Serial: 16794

2шт.

15

T53944

HANDLE

LOCK HANDLE, quick attaching parking stand 70L and 70S, Start Serial: 16794

2шт.

16

T54047

STAND - lower, quick attaching parking stand 70L and 70S, Start Serial: 16794

2шт.

17

T54066

CHAIN (AG)

CHAIN ASSEMBLY, quick attaching parking stand 70L and 70S, Start Serial: 16794

2шт.

18

T54067

PIN

- quick main frame, quick attaching parking stand 70L and 70S, Start Serial: 16794

2шт.

19

T54068

PIN

- quick cylinder, quick attaching parking stand 70L and 70S, Start Serial: 16794

2шт.
