Запчасти Case IH 70 (78) - MANURE FORK, SNOW BUCKET ATTACHMENT, LIGHT MATERIAL AND SNOW (82) - FRONT LOADER & BUCKET

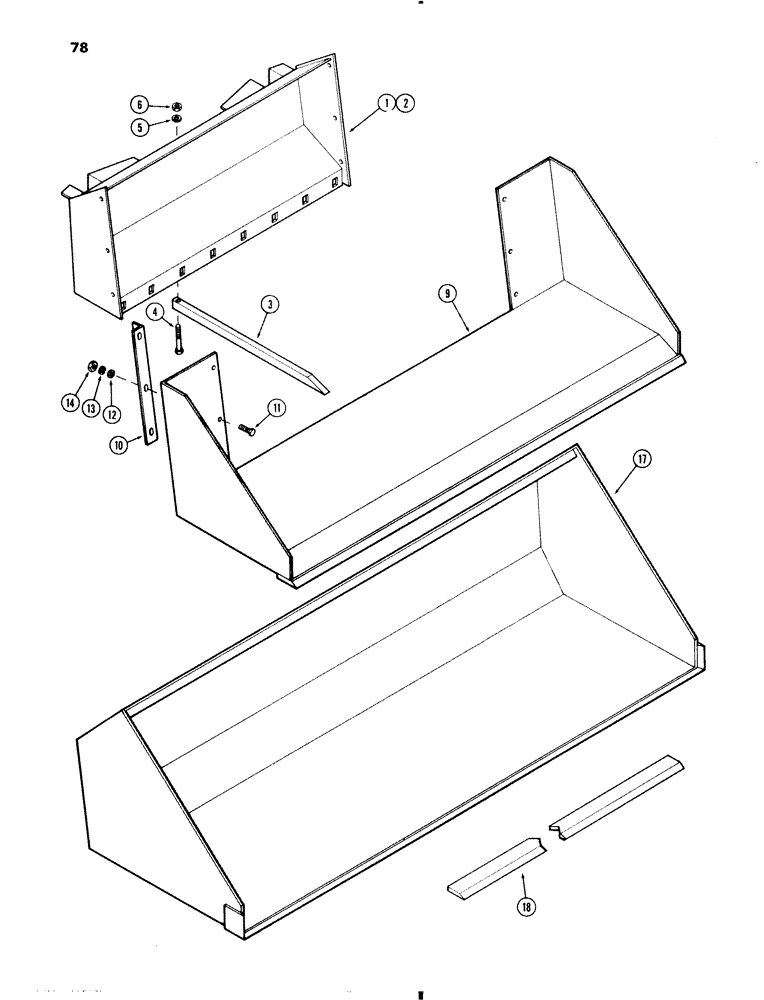

Схема запчастей Case IH 70 - (78) - MANURE FORK, SNOW BUCKET ATTACHMENT, LIGHT MATERIAL AND SNOW (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

T89805

FORK - manure 48" (Machinery Item)

1шт.

2

T88299

FORK - manure 60" (Machinery Item), Includes: Ref. 3 - 6

1шт.

3

T50005

TINE

S - 1 x 1-1/2 x 32-13/16" (48" fork)

8шт.

3

T50005

TINE

S - 1 x 1-1/2 x 32-13/16" (60" fork)

10шт.

4

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(48" Fork) Hex, 3/8"-16 x 2 1/4", G5

8шт.

4

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(60" Fork) Hex, 3/8"-16 x 2 1/4", G5

10шт.

5

92-6

LOCK WASHER,3/8"

(48" Fork) 3/8"

8шт.

5

92-6

LOCK WASHER,3/8"

(60" Fork) 3/8"

10шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" NC hex (48" Fork)

8шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" NC hex (60" Fork)

10шт.

9

T89812

BUCKET - snow (Machinery Item) (48" fork), snow bucket attachment

1шт.

9

T88300

BUCKET - snow (Machinery Item) (60" fork), snow bucket attachment

1шт.

10

T50010

ANGLE

snow bucket attachment

2шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Snow bucket attachment Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

12

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge, snow bucket attachment

12шт.

13

92-6

LOCK WASHER,3/8"

snow bucket attachment 3/8"

12шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, snow bucket attachment

12шт.

17

T92149

BUCKET - 96" light material and snow (Machinery Item), Includes: Ref. 18, light material and snow bucket

1шт.

18

T53865

EDGE

- replaceable 104", light material and snow bucket

1шт.

Выбрано товаров: 19
